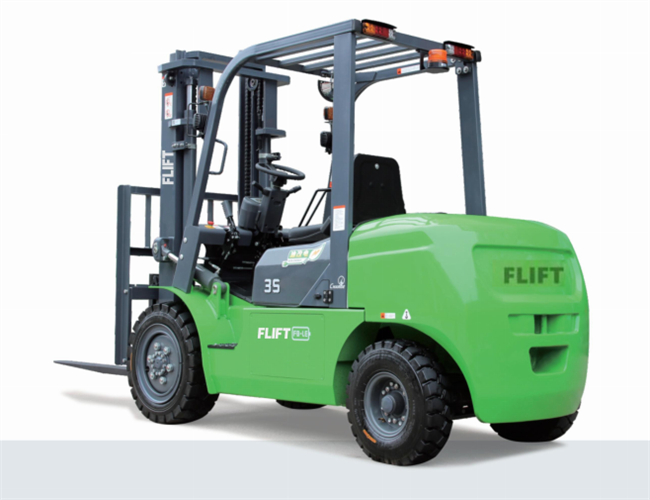

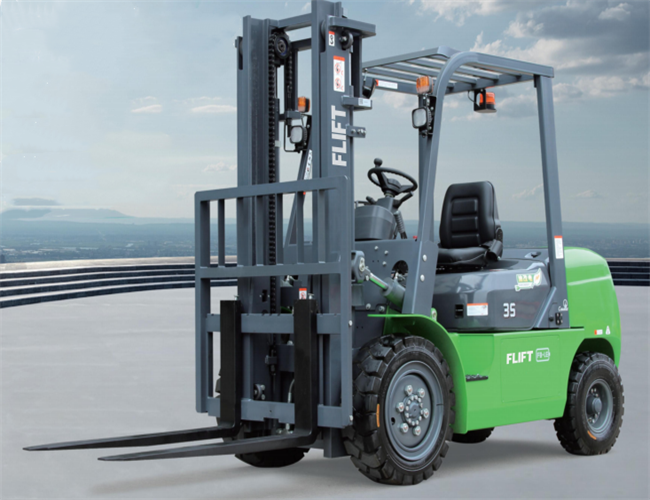

Easy Operation High capacity Rated Capacity 3500kg FB35LE Low Voltage Lithium Battery Forklift with Load Center 500mm

Date: 2022-07-11 View:

Multi-function Rated Capacity 3500kg Low Voltage Lithium Battery Forklift with Wheel Base 1800mm

Comfortable Operating Space
The ergonomic all-round operation space layout is optimized to creat a good, comfortable and convenient drining experience for the operator.
*Front hydraulic joystick *Incllnation adjustable small diameter steering wheel *Sawtooth anti-skid pedals
*Wide vision gantry design *Front and rear adjustable wrap-around seat(adjustable range up to the 150mm)


Advanced Electrical System
Using domestic controller, after professional adjustmant, the control of walking and lifting is accurate and efficient,and it has functions such as regenerative braking, ramp braking and fault self-diagnosis.

Product Parameters
Model

FB35LE

Power Type


Lithium Battery

Rated Capacity

kg

3500

Load Center

mm

500

Service weight

kg

4500

Tyre type


Air tires

Wheel number X=drive wheel


2x2/2

Tyre Size(Front)


28*9-15-14PR

Tyre Size(Rear)


6.50-10-10PR

Front Tread

mm

1000

Rear Tread

mm

960

Wheel base

mm

1800

Fork Size

mm

1070*125*50

Mast Tilt Angle

Deg

6/12

Lift Height

mm

3000
