High Quality Rated Capacity 5ton Battery Forklift Curtis Controller with Lifting Height 3m

Date: 2022-08-10 View:

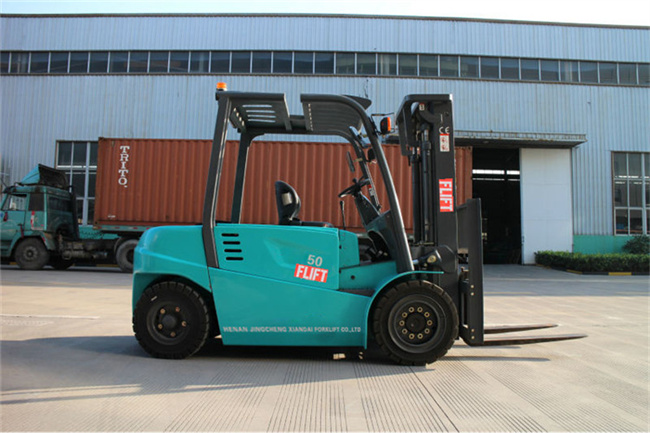

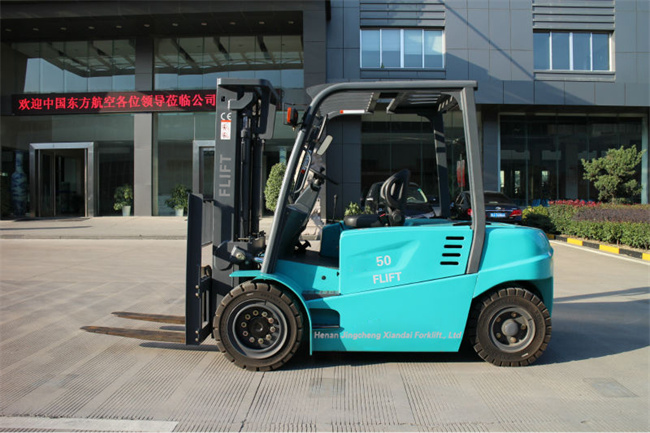

 Chinese Brand FLIFT FB50 Rated Capacity 5ton 4ton 3ton Lifting Height 3m 4.5m 6m

1.Comfortable Operating Space
Ergonomic full-scale operation space layout which give the operator a good, comfortable and convenient operating experience.
>Sinking design of tilting cylinder;
>Fully surround instrument panel cover;
>Wide vision gantry design;
>Right hydraulic joystick, safety power-off switch and storage box;
> Secondary boarding pedals;
>Inclination adjustable steering wheel;
> Front and rear adjustable wrap-around seat (adjustable range up to 150mm).

2.High Quality Electrical Components
Original imported world famous brand controller. After professional adjustment, walking and upgrade control precision and efficiency, it has excellent performance, regenerative braking, ramp braking, fault self-diagnosis and other functions.
>Regenerative braking: under the working conditions of deceleration, downhill, reversing, etc., the traveling motor of the forklift turns into a generator, and the battery is reversely charged through the controller, which is highly efficient and energy-saving;
>Imported brand accelerator;
>Imported power connector;
> AMP waterproof wiring harness.

3.Efficient Diving System
Advanced dual motor driving system, compact structure, better driving and climbing performance, lager torque, more powerful output.
>Italy imported PMP high-efficiency bridge box integrated drive unit;
>Maintenance-free wet disc brake system;
>New maintenance-free AC motor with high transmission efficiency and low maintenance and maintenance costs.

4.Reliable Steering System
Adopting dynamic load sensing priority steering system, the forklift steering more quickly, driving more smoothly.
>Equipped with original imported corner potentiometer to monitor corner information in real time.

Product Parameters
Model
FB50
Power Type
Electric
Rated Capacity kg 5000
Load Centre mm 500
Lift Height mm 3000
Fork Size mm 1070*150*50
Mast Tilt Angle Deg 6°/9°
Front Overhang (Wheel Center to fork face) mm 555
Tread mm 1280/1190
Ground Clearance (Bottom of mast) mm 160
Fork Spread
300/1380
Length to face of fork(Without fork) mm 3030
Overall Width mm 1600
Mast Lowered Height mm 2330
Mast Extended Height(With backrest) mm 4255

Certification


The Video of Product
