Optional Japanese engine diesel forklift truck 3.5 ton diesel forklift price

Date: 2022-04-07 View:

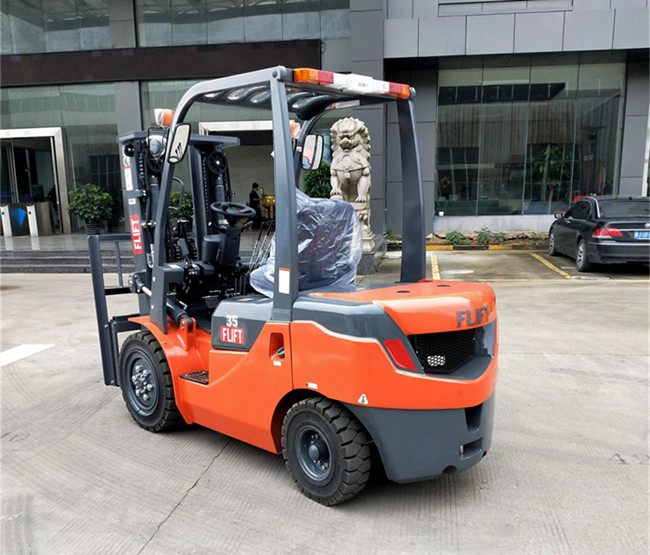

 FLIFT forklift 3.5 ton diesel forklift truck with side shift Japanese engine triplex mast


FLIFT forklift company has more then 11 years experience of export, working with us will not let you down.


Famous ISUZU engine, can be optional with Chinese engine, Korea engine, German engine, American engine, etc. can be with EPA certification engines.

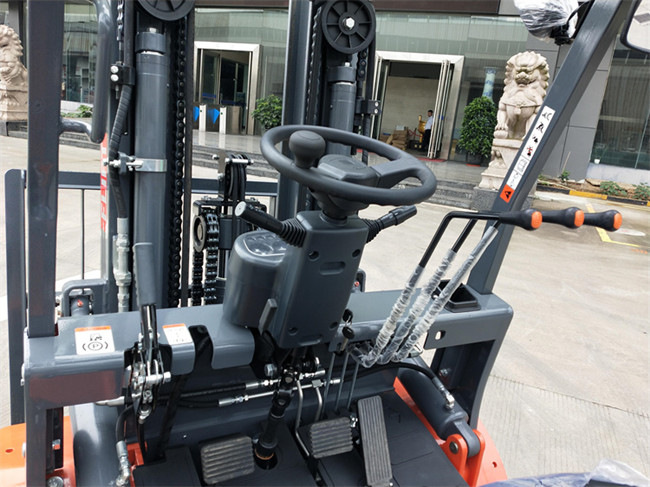

Comfortable driving experience, reasonable functional layout, which ensure the operator a long time comfortable and security operation.Seat with belt, provide a more comperhensive security for the operator.

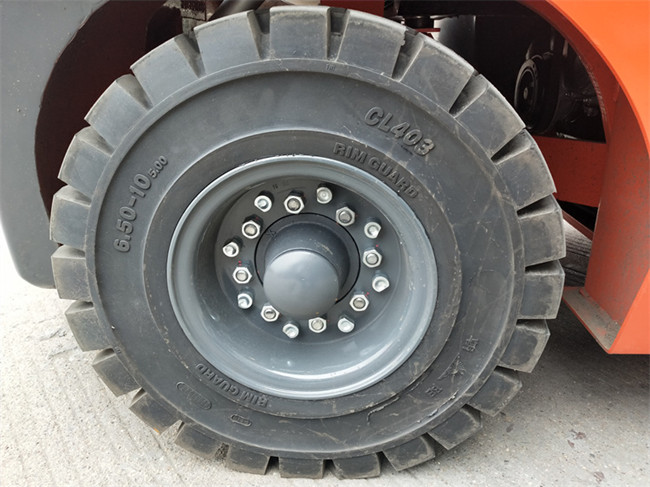

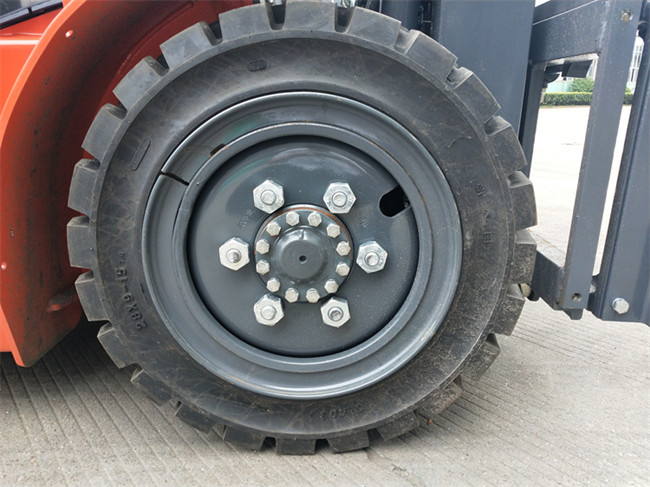

Front and rear tires, standard with air tires, could be optional with solid tires.


3-stage 4 meter full free mast with side shifter, could working in the container, can be optional 2-stage wide view mast and different lift height, and optional forklift attachments.

FLIFT 3.5 ton diesel forklift specification
Model
FD35
Rated Capacity kg 3500
Load Centre mm 500
Lift Height mm 4000
Fork Size mm 1070*125*50
Mast Tilt Angle Deg 6°/6°
Front Overhang (Wheel Center to fork face) mm 480
Ground Clearance (Bottom of mast) mm 135
Length to face of fork(Without fork) mm 2770
Overall Width mm 1225
Mast Lowered Height mm 1970
Mast Extended Height(With backrest) mm 5175
Overall Guard Height mm 2090
Turning Radius(outside) mm 2480
Min. insecting aisle mm 2530
Travel(Empty load) km/h 19
Lifting(Full load) mm/s 520
Max. Gradeability % 20
Front tire
28x9-15-12PR
Rear tire
6.50-10-10PR
Wheel Base mm 1700
Service Weight kg 4500

FLIFT forklift CE approved:
