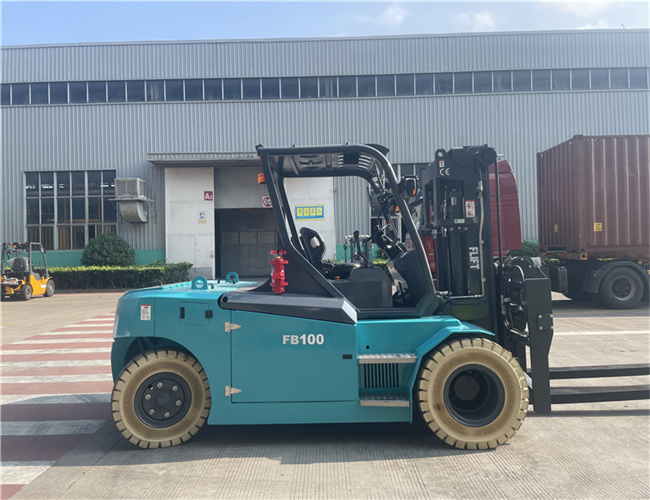

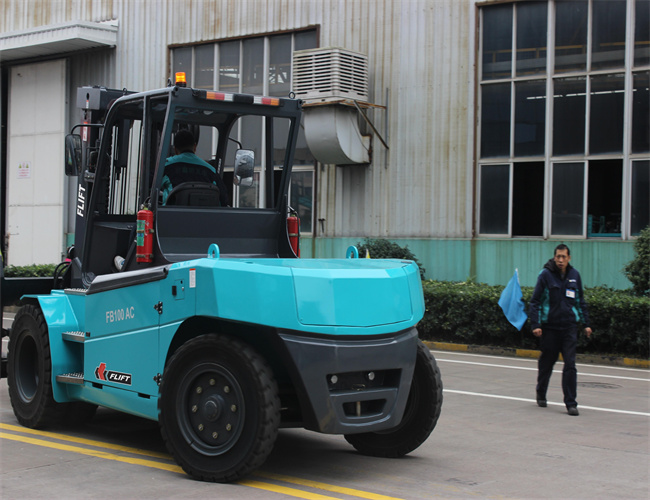

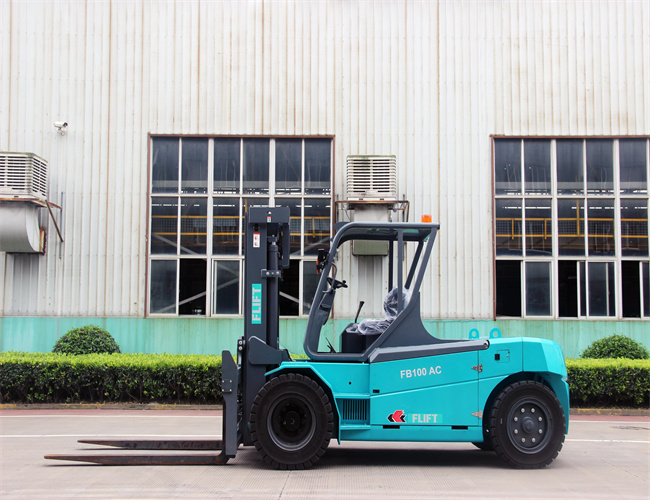

Factory Supply Brand FLIFT FB100 Battery Forklift Rated Capacity 10000kg with Load Center 600mm

Date: 2022-07-01 View:

Innovative New Design FB100 Battery Forklift Fork Length 1220mm with Min. Ground Clearance 210 mm



Excellent Mast View
Equipped with optimized design whole view mast, piping on both external sides, provide excellent front view for drivers.Two battery sink-type layout innovation design in the middle of chassis which gives the driver excellent rear view.



Efficient Driving System

Advanced dual motor driving and dual pump power system, compact structure, better driving and climbing performance,lager torque, more powerful output.
>German original imported KESSLER (Kessler) axle box integrated high-performance drive system;
>Italy imported DCASPPA low noise gear pump;
>Maintenance-free multi-disc wet braking system, full hydraulic power braking, equipped with excellent large-capacity bladder accumulator, excellent performance in driving and emergency braking;
>German original imported DSCHABMULER (Shaber Muller) maintenance-free AC motor, strong torque, energy saving and high efficiency.



Comfortable Driving Space
Ergonomic driving layout design which create a good,comfortable and convenient operating experience for the drivers.
>Tilt cylinder sinking design:
>Inclination adjustable small diameter steering wheel.



Product Parameters
Model
FB100
Power Type
Electric
Rated Capacity kg 10000
Load Centre mm 600
Lift Height mm 3000
Fork Size mm 1520*175*85
Mast Tilt Angle Deg 6°/10°
Front Overhang (Wheel Center to fork face) mm 750
Tread mm 1650/1700
Ground Clearance (Bottom of mast) mm 210
Min. Fork Spread
515
Length to face of fork(Without fork) mm 4480
Overall Width mmmm 2270
Mast Lowered Height mm 2810
Mast Extended Height(With backrest) mm 4550

Certification


The Video of Product
