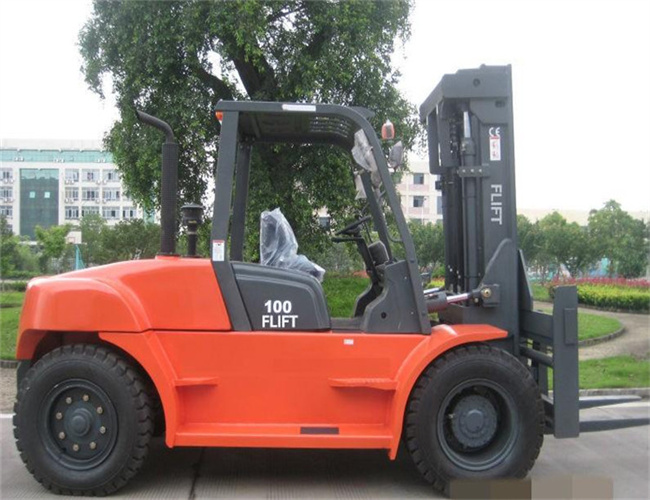

Hot sale FD100 Rated Capacity 10t Diesel Forklift with Load Cnenter 600mm

Date: 2022-07-01 View:

High Capacity Load center 600mm Diesel Forklift 10000kg with Mast Lowered Height 2830 mm

Intelligent starting system, forklift hanging gear start prevent function,it improves the operation safety and longer gearbox service life.
Hydraulic power brake system, large capacity accumulator, reliable driving and emergency braking.
Overhead guard with high-strength steel plate one stamping, provide driver more sophisticated security.
Standard equipped button parking brake, effectively prevent the handbrake from accidentally release.

Ergonomic design, rational operating device layout, equipped with adjustable seats (adjustment up to 150mm) and steering wheel.

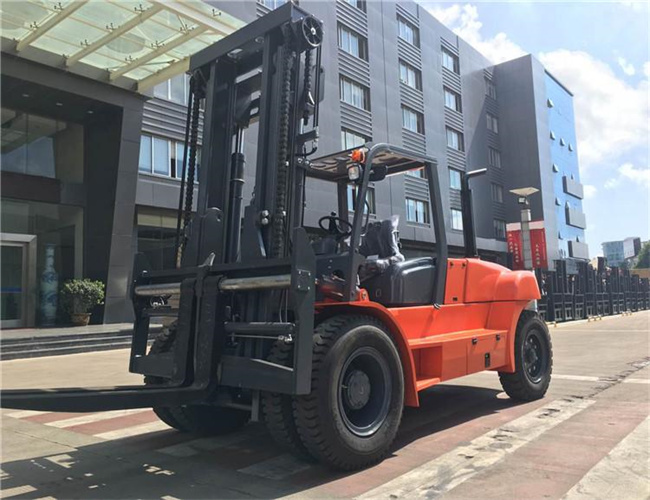

The 10t and 12t model with fork positioner, easy to adjust the fork distance; The 5-8tforlift have fork positioner for option.
A forklift models standard with hydraulic seeing system, easy and comfort to operate

World famous imported diesel and gasoline engine, Japan Okamura
gear box and wet drive axle for options.
Intelligent LCD instrument, CAN,Controller Area Network, real-time display of engine and forklift's working information.

Convenient Maintenance
Reasonable Body parts, large space, hood open angle of up to 70°,easy maintenance.

Product Parameters
Rated Capacity kg 10000
Load Center mm 600
Lift Height mm 3000
Fork Size mm 1520*175*85
Mast Tilt Angle ° 6°/12°
Front Overhang (Wheel Centere to Fork Face) mm 750
Ground Clearance (Bottom of mast) mm 240
Length to face of fork(Without fork) mm 4280
Overall Width mm 2170
Mast Lowered Height mm 2830
Mast Extended Height(With backrest) mm 4320
Overall Guard Height mm 2570
Turning Radius(outside) mm 3970
Min. insecting aisle mm 3590


The Video of Product
