Multi-function Innovative New Design FB120 Lithium Battery Fork Length 1520mm Forklift with Chinese Battery

Date: 2022-05-27 View:

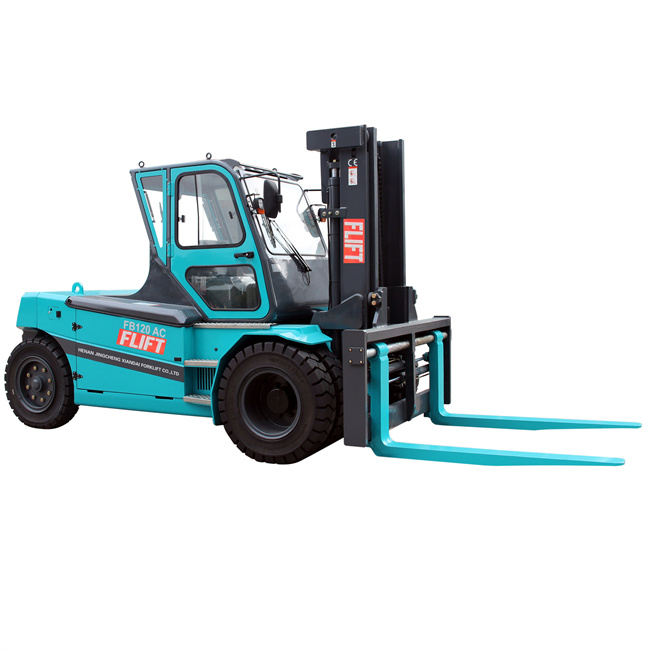

Factory Supply High Capacity FB120 Imported Electrical Controller Lithium Battery Forklift with Solid Tires

Excellent Mast View
Equipped with optimized design whole view mast, piping on both external sides, provide excellent front view for drivers.Two battery sink-type layout innovation design in the middle of chassis which gives the driver excellent rear view.

Efficient Driving System
Advanced dual motor driving and dual pump power system, compact structure, better driving and climbing performance,lager torque, more powerful output.
>German original imported KESSLER (Kessler) axle box integrated high-performance drive system;
>Italy imported DCASPPA low noise gear pump;
>Maintenance-free multi-disc wet braking system, full hydraulic power braking, equipped with excellent large-capacity bladder accumulator, excellent performance in driving and emergency braking;
>German original imported DSCHABMULER (Shaber Muller) maintenance-free AC motor, strong torque, energy saving and high efficiency.

Comfortable Driving Space
Ergonomic driving layout design which create a good,comfortable and convenient operating experience for the drivers.
>Tilt cylinder sinking design:
>Inclination adjustable small diameter steering wheel.

Product Parameters
Brand Model
Power Type
Driving Type
Rated load capacity kg 12000
Load center mm 600
Self weight kg 15800/27800
Solid Tires
Tires Number X=Drive tire(F/R)
Front Tires
Rear Tires
Front Tread mm 1736
Front Tread mm 1754
Wheelbase mm 2850
Lift Height mm 3000
Fork Size mm 1220×175×85
Mast Tilt Angle ° 6/10
Mast Lowered Height mm 2830
Free Lift mm 230
Mast Extended Height(With backrest) mm 4260
Minimum right angle channel width mm 4050
Minimum right angle stacking aisle width mm 5960
Fork adjust range(outside) mm 515-2055
Length to face of fork(Without fork) mm 4412
Overall Width mm 2250
Overall Guard Height mm 2640
From seat to the overhead guard mm 1040
Front Overhang mm 845
Rear Overhang mm 716
Turning Radius mm 3850
