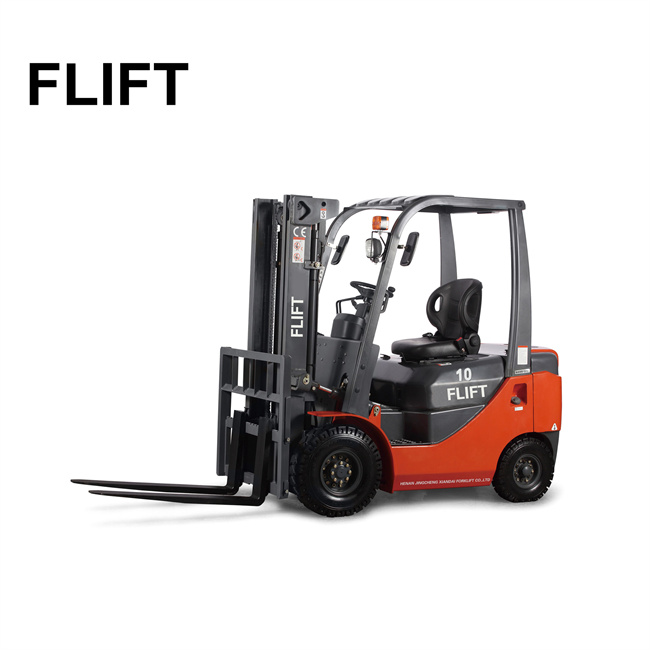

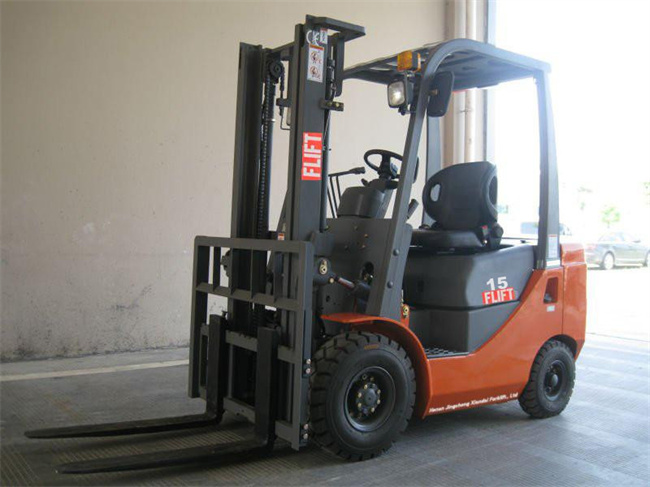

China high quality cheap price Pneumatic tires Diesel Forklift Truck 1.5Ton powerful FD15 Diesel Forklift For Sale

Date: 2022-05-26 View:

Original Chinese engine forklift truck 1.5 ton FD15 Diesel Forklift Price with fork length 920mm



High Strength Overhead Guard
The overhead guard adopts the high strength steel sheet to press molding, providing more sophisticated security for the driver, it can also prevent wind and rain.



Reliable Lifting System
Wide view mast design, ensure the driver has an excellent view, which makes loading and unloading operations more secure and efficient.
>High-strength alloy channel steel (20MnSiv), the performance is improved by 20% compared with ordinary gantry channel steel;
>Three-section fully free gantry pipeline design, with the same field of view as the two-section gantry;
>The main side rollers are designed independently.



High Performance Hydraulic System
Load sensing priority steering hydraulic system design, flexible steering, mast lift speed increased by 20%;
>Tilt cylinder, lift cylinder and steering cylinder are equipped with imported oil seals;
>The lifting cylinder comes standard with the lowering buffer function.



Variety Kinds Of Options

FLIFT forklifts provide users with a variety of power options. Different Power Engines.
>In addition to conventional mechanical and hydraulic gearboxes, Japanese original Okamura suspension gearboxes can be provided;
> Can provide diesel, gasoline, LPG, LNG, CNG fuel power;
>Steering axle can choose steel plate welded axle or one-piece cast axle.



Comfortable Driving Space
All accessories like engine, gear box are supported by domestic and world famous brand, high quality, reliable after-sales.
>Large opening iron stamping hood (opening angle can reach 70%), built-in heat insulation and sound insulation molding lining;

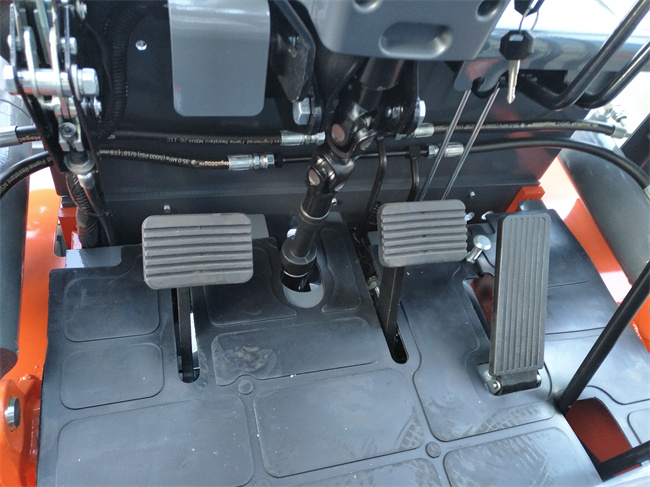

>Large open anti-skid pedals make it more convenient and safe for the operator to get on and off;


Product Parameters
Model

 Power Type


 Diesel

Rated Capacity

KG

 1500

 Load Centre

mm

 500

 Lift Height

mm

 3000

 Fork Size

mm

 920×120×35

Mast Tilt Angle

Deg

 6°/12°

 Front Overhang (Wheel Center to fork face)

mm

 420

 Ground Clearance (Bottom of mast)

mm

 110

 Length to face of fork(Without fork)

mm

 2295

 Overall Width

mm

 1086

 Mast Lowered Height

mm

 1995

 Mast Extended Height

mm

 3940

 Overall Guard Height

mm

 2040

 Turning Radius

mm

2055


Certificate
