Factory Innovative Design 16 tons FD160 Wiede-view 2-stage 3 meter mast Diesel Forklift for sale with Competitive price for sale

Date: 2022-05-25 View:

High Capacity diesel forklift China original FD160 16ton Chinese hydraulic parts with Pneumatic tries



Cooling System

The cooling system has an excellent heat-radiation performance to ensure the high-intensity operation in some hot districts.
Optimization design on the cooling channel with another air outlet on the lower counter-weight, and air fluid science design on the upper counter-weight. The hood rear tuyere is designed as shutter type wind guide scrambling structure to mostly improve the fan efficiency.



The cooling assembly is compromised of 3 individual cooling module with stacking type layout but not anteroposterior stack. It has a better air permeability with low dust to ensure the long term normal working of the cooling system.



Convenient Maintenance
The CAN vehicle diagnostic system, engine ECU and transmission TCU controlling system can get rid of some simple problems. The error code will be shown on the screen to fast and easily recognize the error information for fast maintenance and repair to shorten the maintenance period.

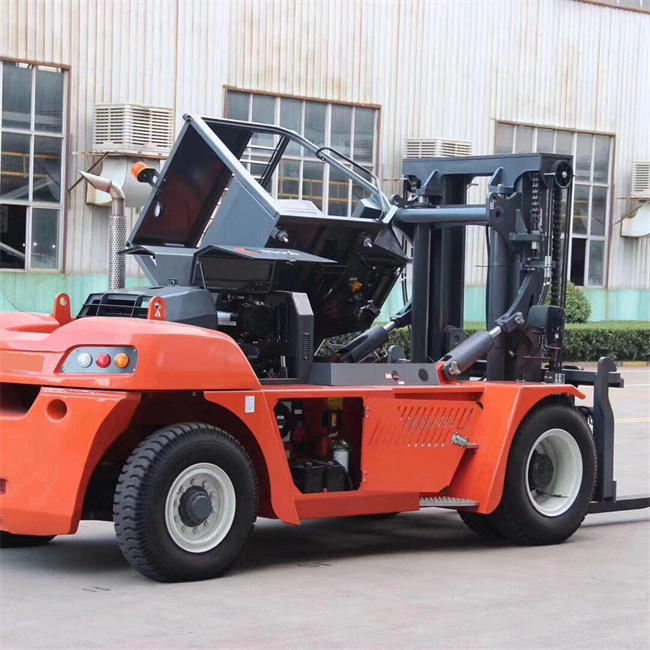

Reasonable structure, the wide-angle tip-over cab and gull wing type hood ensures the more convenient and faster maintenance job on the power system.
Openable electric cabinet design is apparent to the eyes with a integrated electrical parts layout which improves the convenience of the electrical parts maintenance.



Product Parameters

Model
FD160
Power Type
Diesel
Rated Capacity kg 16000
Load Centre mm 600
Lift Height mm 3000
Foek Size mm 1820*200*90
Mast Tilt Angle Deg 6°/12°
Front Overhang  mm 900
Ground Clearance mm 255
Length to face of fork mm 4960
Overall Width mm 2490
Mast Lowered Height mm 3170
Mast Extended Height mm 4670
Overhead Guard Height mm 2930
Turning Radius mm 4500
Service Weight kg 20500
