China Manufacture FLIFT Brand 1.5 Ton Electric Rough Terrain Stacker Price

Date: 2022-03-30 View:

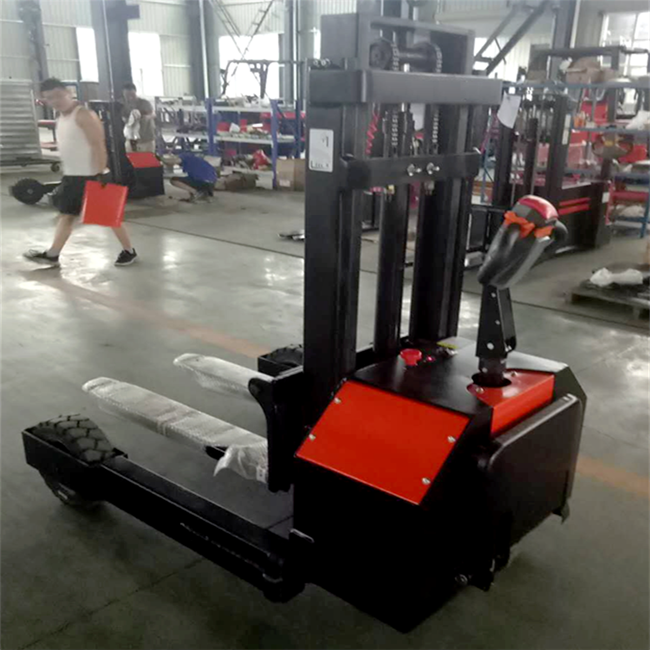

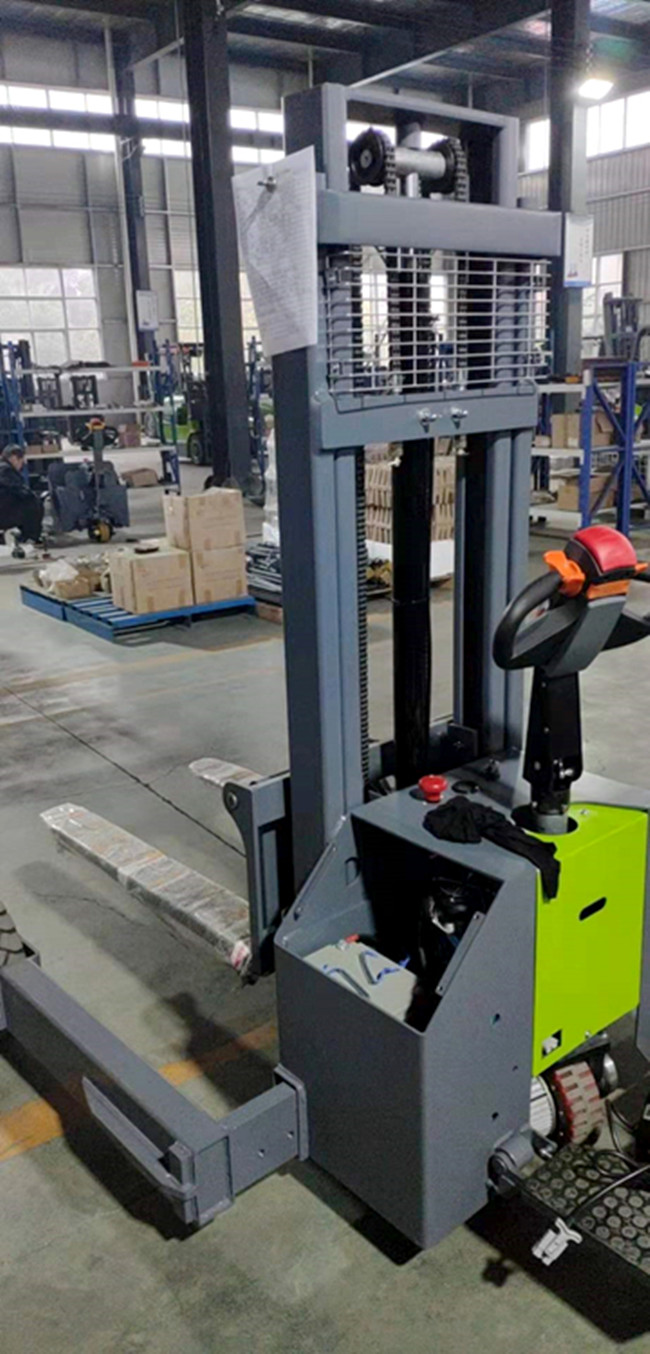

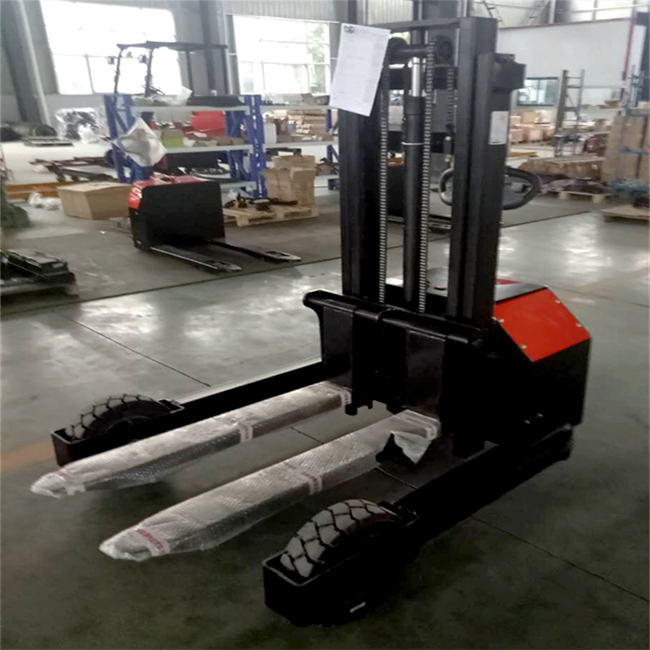

 Chinese suppliers 1.5 ton Outdoor Rough terrain electric stacker All terrain stacker


Main performance introduction:
       (1) Use special C-shaped channel steel for forklifts.
       (2) Sealing and waterproofing of the wiring plug of the whole vehicle.


(3) It adopts the well-known hydraulic pump station in the industry, with low noise and low power consumption.
       (4) The lifting height of the mast is optional 2m/2.5m/3m.


Standard color is green, can be optional the color as your request.


Adjustable fork, working high efficiency and stable.


Approximate capacity at the top of mast:
2 meter: 1000-1100kg,
2.5 meter: 900kg,
3 meter: 600-700kg.

Parameters:

Model number

DGXC1520

Accumulator

24V/80Ah

Lifting height

2000mm

Drive motor

24V1.5kw

Rated load

1500kg

Lifting motor

24V2.2kw

Self-weight

1000kg

Controller

Permanent magnet brushless

Dimensions (length*width*height)

1600*1000*1680

Driving speed

5.5km/h(loaded

Load center

400mm

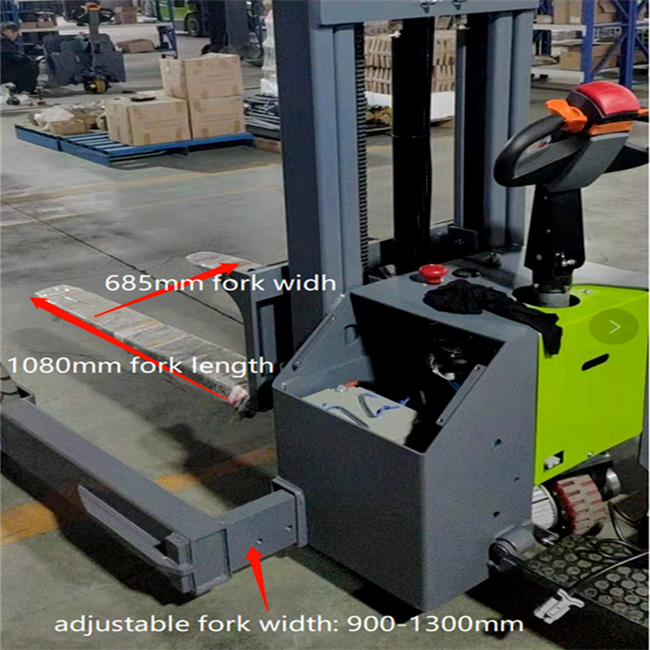

Fork length/width

1080/685

Minimum turning radius

1600mm

Minimum ground clearance

100mm


FLIFT forklifts CE approved:
