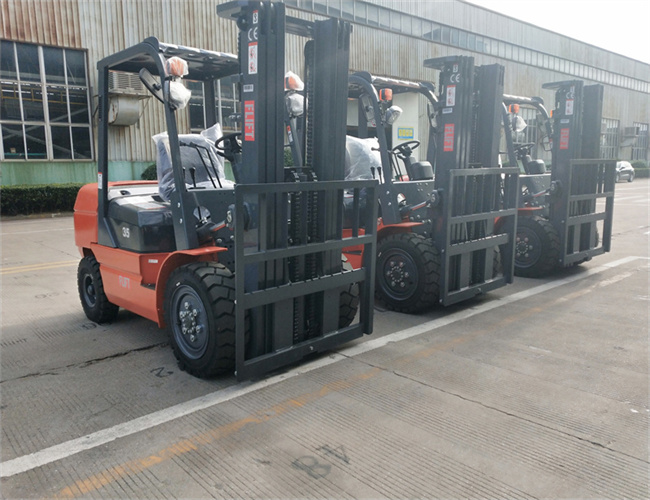

High quality FD30 diesel forklift rated capacity 3000kg Lifting Height 3000mm with Load center 500mm

Date: 2022-07-06 View:

Easy operation High Safety Diesel Forklift 3tons Overall Width 1225mm with Turning Radius 2440mm



High Security Performance

The whole system comes standard with intelligent start system, vehicle hanging gear start preventing, improve safety and extend the service life of the gearbox.
> Seat with belt, provide a more comprehensive security for the driver.
> Overhead guard with high-strength steel plate stamping molding.



Reliable Lifting System
Wide-view mast design, providing superior vision, making the operation more security.
High Performance Hydraulic System
Equipped with load sensing priority hydraulic system, flexible steering, mast lifting speed increased by 20%.

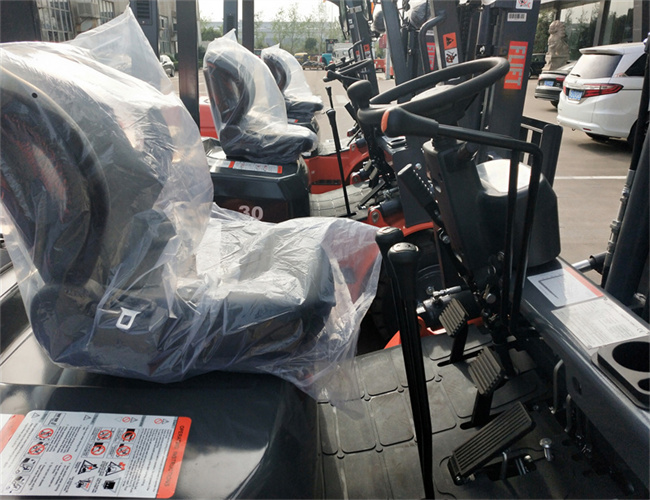

Comfortable Driving Space

Lengthened wheelbase design, reasonable functional layout, super comfortable and large driving space
.



Special Design For Rental Customers

To meet the needs of forklift rental users, TCF forklift launched a series of user-friendly configuration.



Super High Ground Clearance

Chassis up to 200mm, the balance the ground clearance up to 220mm, excellent driving performance.

Product Paremeters
Model
FD30
Power Type
Diesel
Rated Capacity kg 3000
Load Centre mm 500
Lift Height mm 3000
Fork Size mm 1070*125*45
Mast Tilt Angle Deg 6°/12°
Front Overhang (Wheel Center to fork face) mm 475
Ground Clearance (Bottom of mast) mm 135
Length to face of fork(Without fork) mm 2730
Overall Width mm 1225
Mast Lowered Height mm 2115
Mast Extended Height(With backrest) mm 4160
Overall Guard Height mm 2090
Turning Radius(outside) mm 2440

Certification


The Video of Product
