High Quality Imported KESSLER Dual Axle Electric Forklift Truck 12ton FB120 with Fork Length 1520mm

Date: 2022-04-26 View:

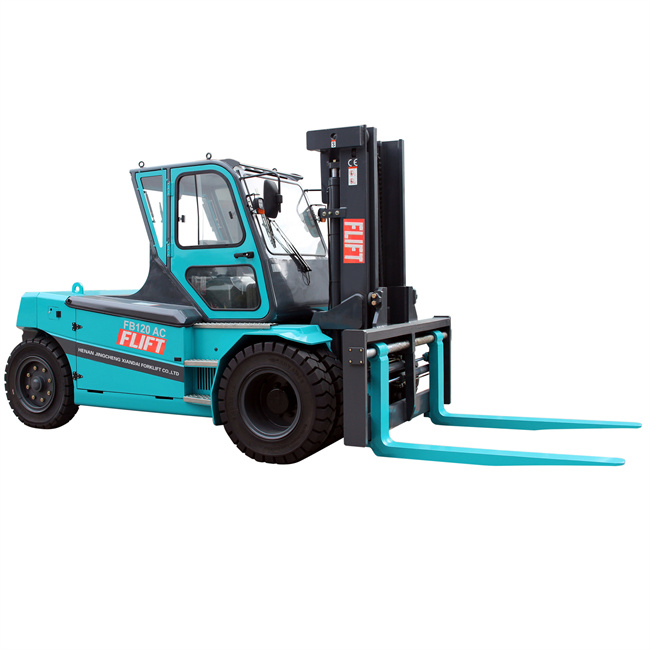

12 ton FB120 Imported Electrical Controller Electric Forklift Truck with Wide-view 2-stage 3meter mast



Excellent Mast View
Equipped with optimized design whole view mast, piping on both external sides, provide excellent front view for drivers.Two battery sink-type layout innovation design in the middle of chassis which gives the driver excellent rear view.


Efficient Driving System
Advanced dual motor driving and dual pump power system, compact structure, better driving and climbing performance,lager torque, more powerful output.
>German original imported KESSLER (Kessler) axle box integrated high-performance drive system;
>Italy imported DCASPPA low noise gear pump;
>Maintenance-free multi-disc wet braking system, full hydraulic power braking, equipped with excellent large-capacity bladder accumulator, excellent performance in driving and emergency braking;
>German original imported DSCHABMULER (Shaber Muller) maintenance-free AC motor, strong torque, energy saving and high efficiency.



Comfortable Driving Space
Ergonomic driving layout design which create a good,comfortable and convenient operating experience for the drivers.
>Tilt cylinder sinking design:
>Inclination adjustable small diameter steering wheel.



Product Parameter
Model
FB120
Power Type
Electric
Load Centre mm 600
Lift Height mm 3000
Fork Size mm 1520*180*100
Mast Tilt Angle Deg 6°/10°
Front Overhang mm 750
Ground Clearance mm 210
Length to face of work mm 4480
Overall Width mm 2270
Mast Lowered Height mm 2810
Mast Extended Height mm 4550
Overhead Guard Height mm 2650
Turning Radius mm 3850
Service Weight kg 16910
