3.5 Ton Diesel Forklift FLIFT Brand Cheap 3.5 Ton High Quality Diesel Forklift With CE

Date: 2022-06-09 View:

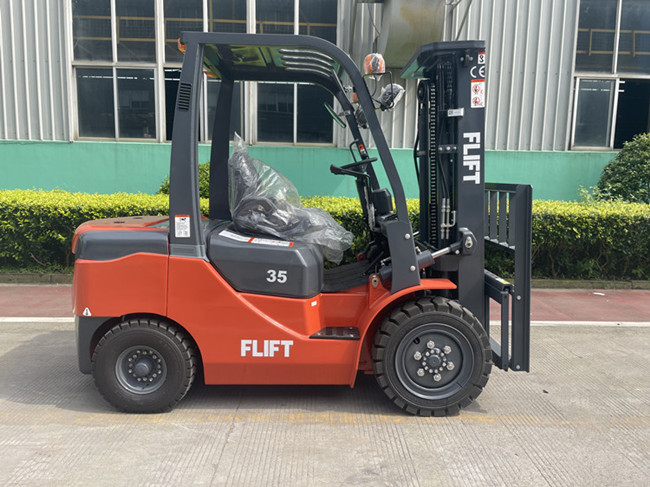

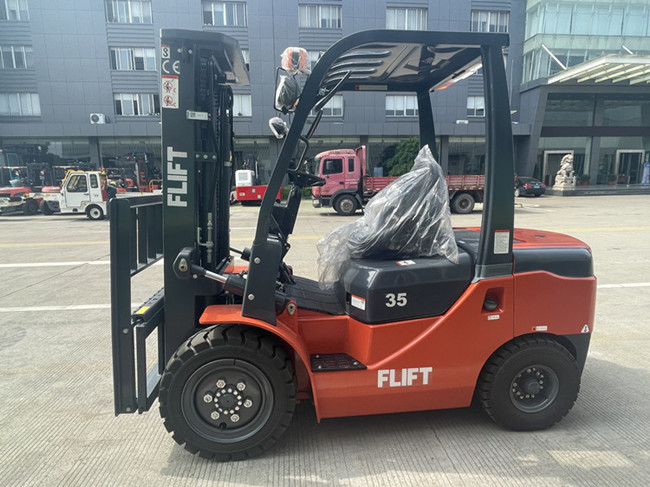

 Chinese forklift manufacturer FLIFT FD35 3.5 tons diesel forklift truck



High Strength Overhead Guard
The overhead guard adopts the high strength steel sheet to press molding, providing more sophisticated security for the driver, it can also prevent wind and rain.



Reliable Lifting System
Wide view mast design, ensure the driver has an excellent view, which makes loading and unloading operations more secure and efficient.
>High strength alloy channel steel (20MnSiv), compared with ordinary door frame channel steel performance increased by 20%;
>Triplex full free mast pipeline back-mounted design, with a vision same with duplex mast;
>The main side roller is designed independently.



High Performance Hydraulic System
Load sensing priority steering hydraulic system design, flexible steering, mast lift speed increased by 20%;
>Tilt cylinder, lifting cylinder, steering cylinder standard imported oil seal;
>The lifting cylinder is equipped with descent buffer function.

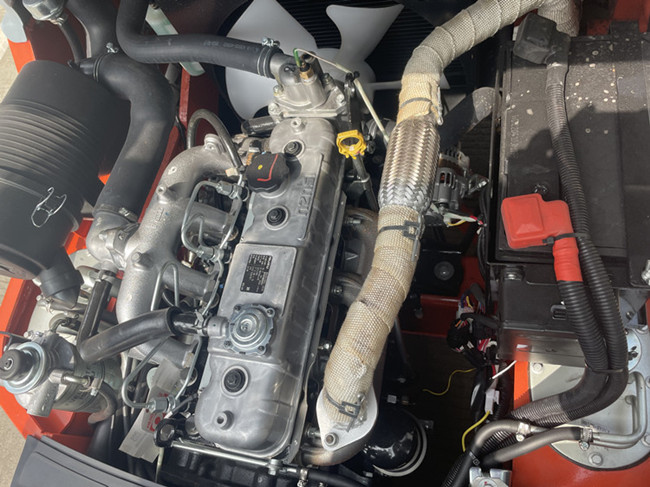

Optional Japanese ISUZU engine.

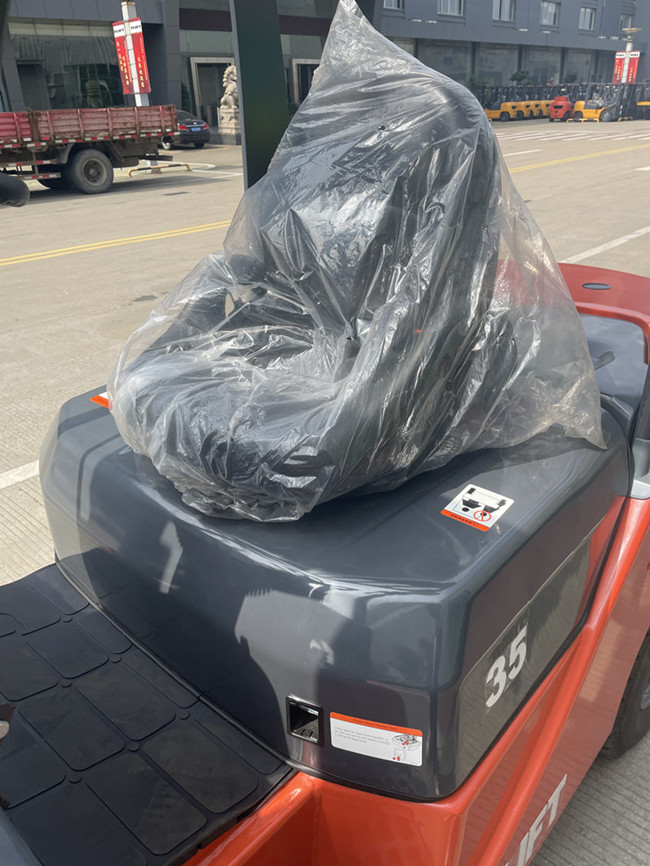

Comfortable Driving Space
All accessories like engine, gear box are supported by domestic and world famous brand, high quality, reliable after-sales.
>Large opening iron press cover (opening Angle up to 70%), built-in heat insulation molding lining;
>Large open anti-skid pedal, so that the operator on and off more convenient, safe;
> Optional instrument panel overlay.

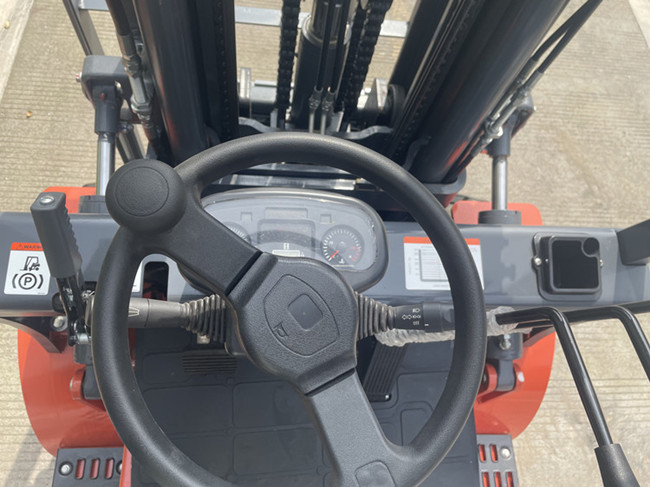

Intelligent LCD Instrument
Charging Light
High Water Temperature Alarm
Oil-water Separator Alarm
Turn Left Indicator
Time
Neutral Indicator
Preheat Indicator
Engine Failure Indicator
Turn Right Indicator
Water Temperature
Fuel Gauge



FLIFT G-series 3.5 ton diesel forklift specification
Model
FD35
Rated Capacity kg 3500
Load Centre mm 500
Lift Height mm 4500
Fork Size (L*W*T) mm 1220*150*70
Mast Tilt Angle (F/R) Deg 6°/6°
Front Overhang (Wheel Center to fork face) mm 480
Ground Clearance (Bottom of mast) mm 135
Length to face of fork(Without fork) mm 2770
Overall Width mm 1225
Mast Lowered Height mm 2135
Mast Extended Height(With backrest) mm 5675
Overall Guard Height mm 2090
Turning Radius(outside) mm 2480
Min. insecting aisle mm 2530
Travel(Empty load) km/h 19
Lifting(Full load) mm/s 520
Max. Gradeability % 20
Wheel Base mm 1700
Service Weight kg 4500

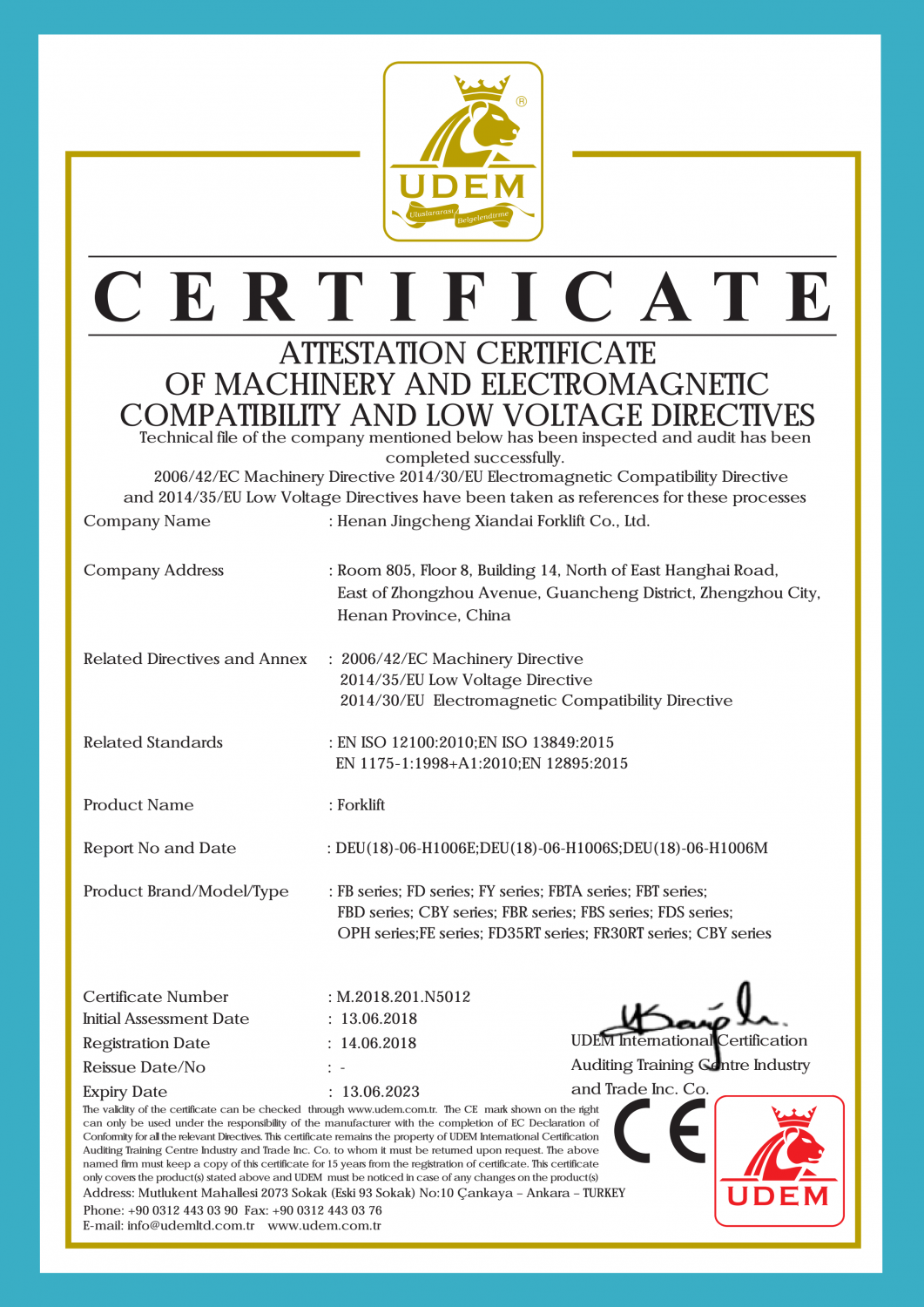

FLIFT brand forklifts CE certificate:

FLIFT 3.5ton diesel forklift testing video:
