High Capacity 6t High Press Lithium Battery Side Loader truck with Load Center 600mm
Date: 2022-06-10 View:
Innovative New Design High Press Side Loader FBS 60 6000KG with Fork Length 1220mm

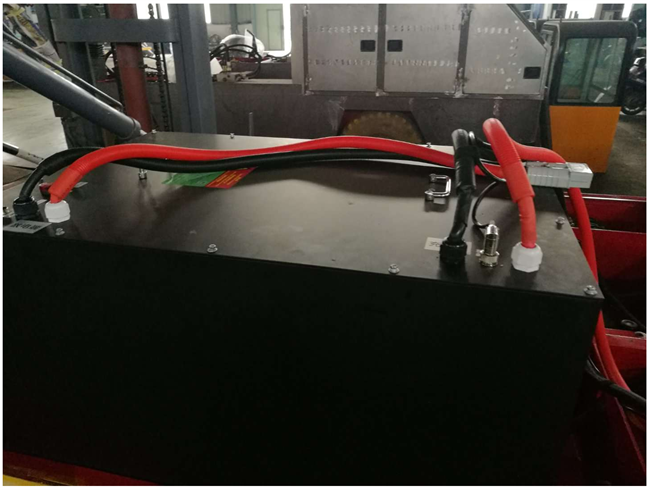

This Vehicle adopts 140.8V high-voltage lithium battery pack, which has higher discharge rate, stronger power and longer endurance than low-voltage lithium battery.

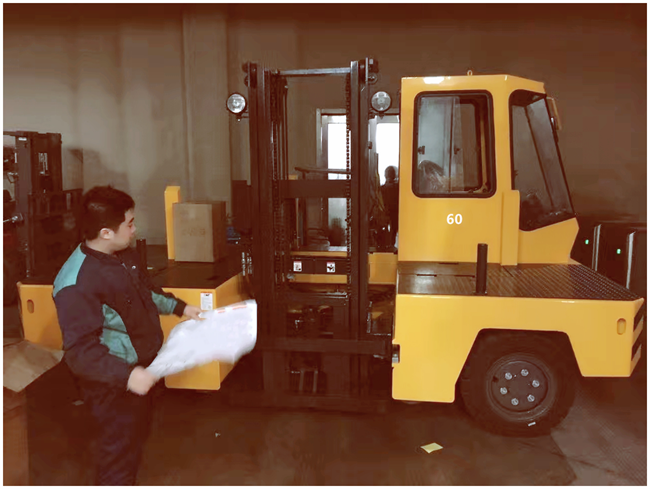

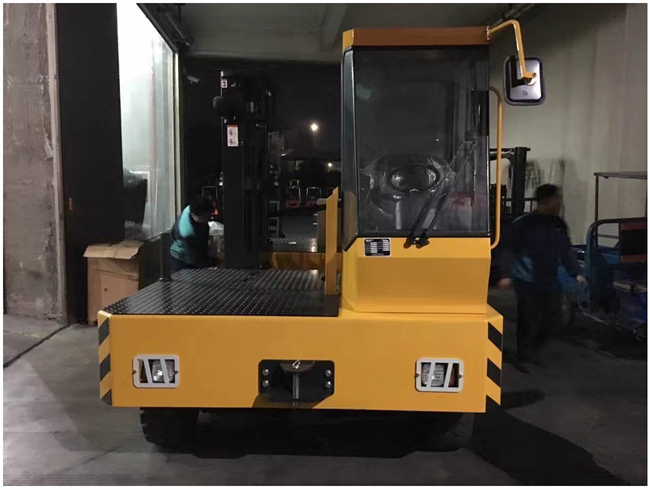

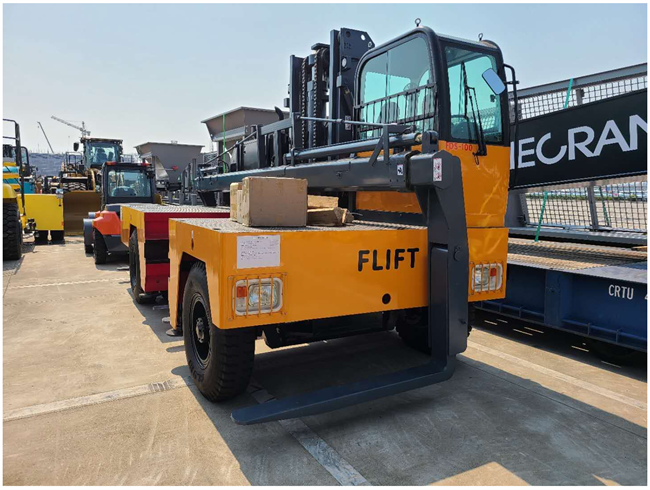

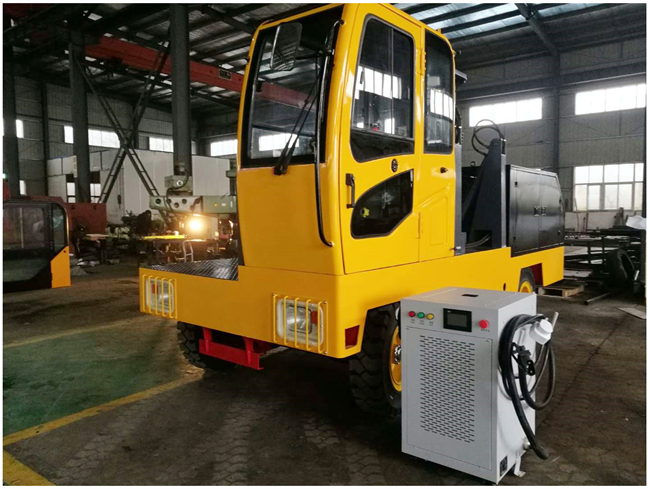

Side loader Forklift truck, also known as side loader, is a material handling equipment designed for long loading. The driver's cab is on the left front. The area to the right of the cab is called a bed or platform.
This contains a central part, called the well, where it bifurcates. The mast and fork protrude to lift the weight from the center point and place it on the forklift.
.png)
Use of forklifts, side loaders and side loaders, usually involving longer loads and narrower channels. Lifting capacity, load type, width or length, and heavy load are also important. In timber, steel and other heavy-duty industries, using diesel or electric side loaders to lift goods has generally proven to be safer and more efficient than forklifts.
Product Parameters
Certification
.jpg)
The Video of Product
This Vehicle adopts 140.8V high-voltage lithium battery pack, which has higher discharge rate, stronger power and longer endurance than low-voltage lithium battery.
Side loader Forklift truck, also known as side loader, is a material handling equipment designed for long loading. The driver's cab is on the left front. The area to the right of the cab is called a bed or platform.
This contains a central part, called the well, where it bifurcates. The mast and fork protrude to lift the weight from the center point and place it on the forklift.
Use of forklifts, side loaders and side loaders, usually involving longer loads and narrower channels. Lifting capacity, load type, width or length, and heavy load are also important. In timber, steel and other heavy-duty industries, using diesel or electric side loaders to lift goods has generally proven to be safer and more efficient than forklifts.
Product Parameters
|
CONFIGURATION DIMENSIONS AND PERFORMANCE |
FBS60 |
|
|
Max.lift capacity |
kg |
6000 |
|
Load center |
mm |
600 |
|
Max.lift height |
mm |
3600 |
|
Max.lift speed(laden) |
m/min | 230 |
|
Fork tilt angle |
Deg |
3°/5° |
|
Gradeability |
% |
15 |
|
Ground Clearance (Bottom of mast) |
mm |
205 |
|
Platform width |
mm |
1300 |
|
Platform length |
mm |
5180 |
|
Fork length |
mm |
1220 |
|
Wheel Base |
mm |
2800 |
|
Front of the wheel spacing |
mm |
1750 |
|
Behind of the wheel spacing |
mm |
1450 |
|
Overall dimension(L×W×H) |
mm |
5180×2100×2950 |
|
Service Weight |
kg | 8700 |
|
Front wheel |
8.25-15-14PR |
|
|
Rear wheel |
8.25-15-14PR |
|
|
Drive axle |
Germany Kessler |
|
|
Controller |
USA Curtis |
|
|
Battery Capacity （high-press lithium battery） |
140.8V/420AH |
Certification
The Video of Product
