3 Ton Diesel Forklift New Design FLIFT 3 Ton Diesel Forklift With High Quality

Date: 2022-06-20 View:

 3 Ton Diesel Forklift FLIFT 2022 New 3.0 Ton Hot Sale Compact Hydraulic Cheap Price

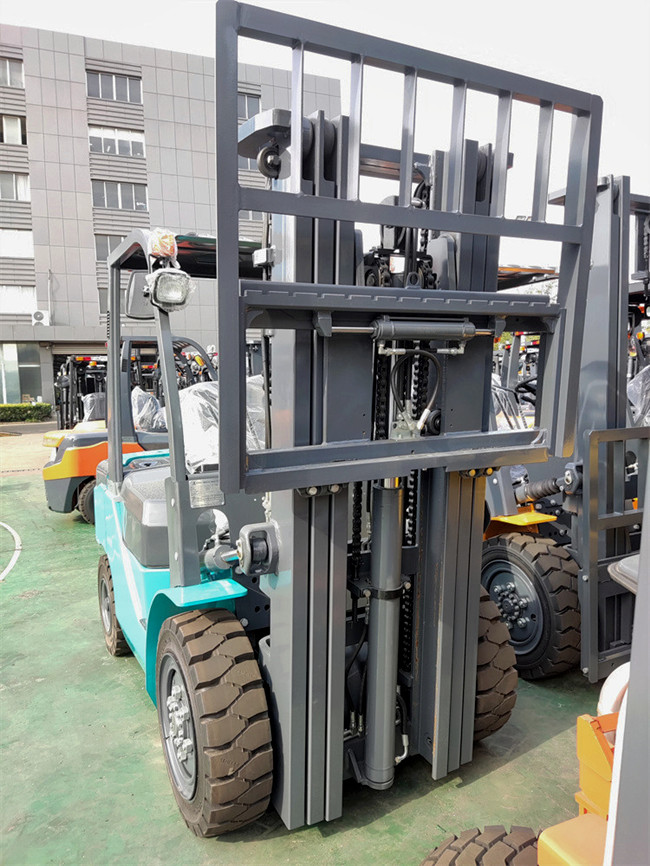

Reliable Lifting System
Wide view mast design, ensure the driver has an excellent view, which makes loading and unloading operations more secure and efficient.
>High strength alloy channel steel (20MnSiv), compared with ordinary door frame channel steel performance increased by 20%;
>Triplex full free mast pipeline back-mounted design, with a vision same with duplex mast;
>The main side roller is designed independently

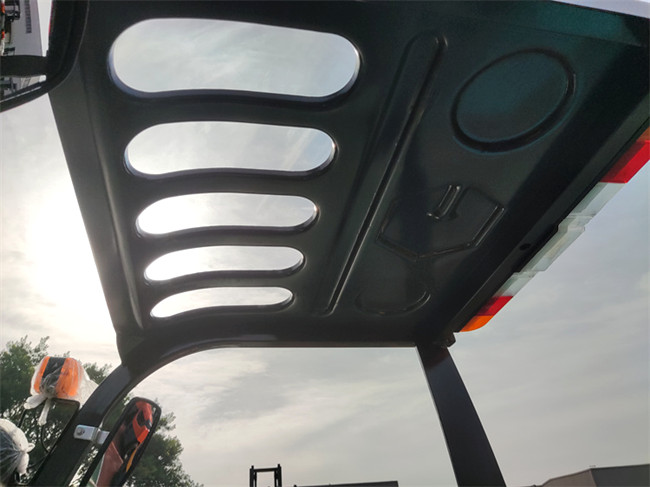

High Strength Overhead Guard
The overhead guard adopts the high strength steel sheet to press molding, providing more sophisticated security for the driver, it can also prevent wind and rain.



Can be customized with full-free mast with side shifter.



High Performance Hydraulic System
Load sensing priority steering hydraulic system design, flexible steering, mast lift speed increased by 20%;
>Tilt cylinder, lifting cylinder, steering cylinder standard imported oil seal;
>The lifting cylinder is equipped with descent buffer function.

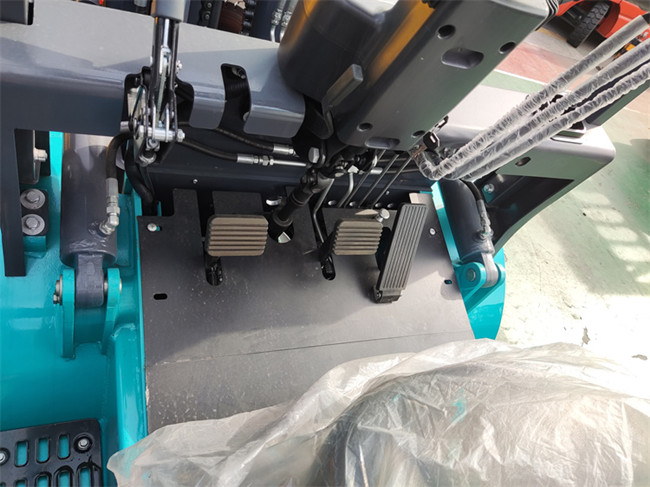

Comfortable Driving Space
All accessories like engine, gear box are supported by domestic and world famous brand, high quality, reliable after-sales.
>Large opening iron press cover (opening Angle up to 70%), built-in heat insulation molding lining;
>Large open anti-skid pedal, so that the operator on and off more convenient, safe;
> Optional instrument panel overlay.



Variety Kinds Of Options
FLIFT truck provides users with a variety of power options. Different Power Engines.
> In addition to the conventional mechanical, hydraulic transmission, can provide the Japanese original Okamura suspension transmission;
> Can provide diesel, gasoline, LPG, LNG, CNG variety of fuel power;
>Steering bridge can choose steel plate welding bridge or one - piece casting bridge.

FLIFT 3.0 ton diesel forklift specification
Model
FD30
Rated Capacity kg 3000
Load Centre mm 500
Lift Height mm 4500
Fork Size(L*W*T) mm 1070*125*45
Mast Tilt Angle(F/R) Deg 6°/6°
Front Overhang (Wheel Center to fork face) mm 475
Ground Clearance (Bottom of mast) mm 135
Length to face of fork(Without fork) mm 2730
Overall Width mm 1225
Mast Lowered Height mm 2115
Mast Extended Height(With backrest) mm 4160
Overall Guard Height mm 2090
Turning Radius(outside) mm 2440
Min. insecting aisle mm 2490
Travel(Empty load) km/h 19
Lifting(Full load) mm/s 550
Max. Gradeability % 20
Wheel Base mm 1700
Service Weight kg 4300
