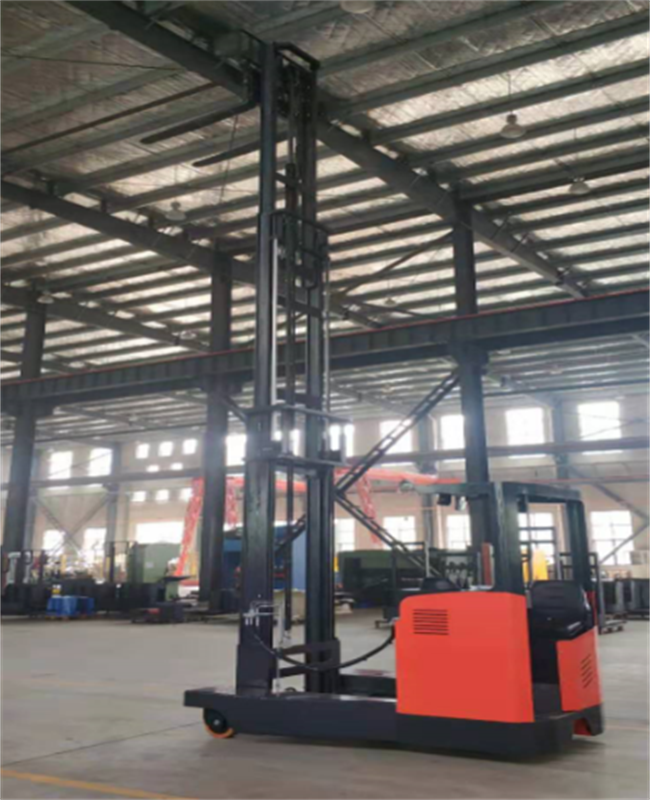

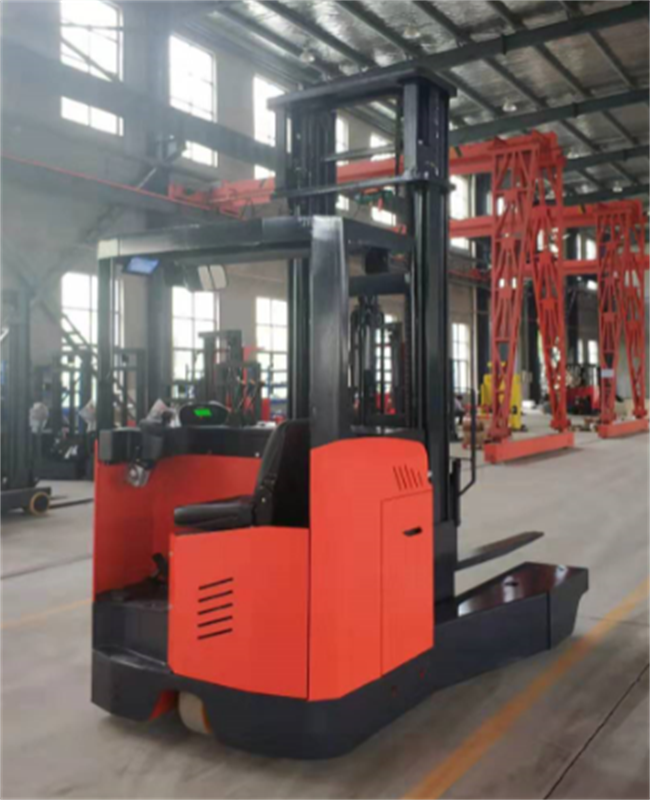

Convenient Operation CQD20S-60 Four-way Reach Forklift Truck Rated Capacity 2000kg with Load Center 500mm

Date: 2022-06-20 View:

Multi-function CQD20S-60 Four-way Reach Forklift Truck with Mast Lowered Height 2680mm

Configuration/Performance
Wide Angle view, high strength shock absorption door frame, CURTIS brand drive control system, Mid-south transmission, electronic steering, light and quiet, Shimadzu brand low noise hydraulic pump and valve, four way travel, drive speed compensation
Electromagnetic, regenerative braking system, high and low voltage limit electrical overheating protection, line fault detection, error code diagnosis, torch brand 48V large capacity lead acid battery.


Security
Bend automatic deceleration device, fork high cargo position automatic deceleration, drive stepless speed regulation, controller multiple automatic protection system, induction type safety seat, cylinder safety cut-off valve low noise hydraulic, side pull type battery IED headlamp, optional widened fork, double fork.

Product Parameters
Product Name
Four-way Reach Forklift Truck
Model
CQD20S-60
Rated Capacity kg 2000
Mast Extended Height mm 6000
Load Center mm 500
Tyre
Solid PU
Fork Length mm 1070
Fork Width mm 100
Fork Height mm 45
Overall Length mm 2480
Overall Width mm 1800
Turning Radius mm 1900
Overhead Guard Height mm 2190
Overall Weight kg ~3300
Brand
FLIFT

Certification
