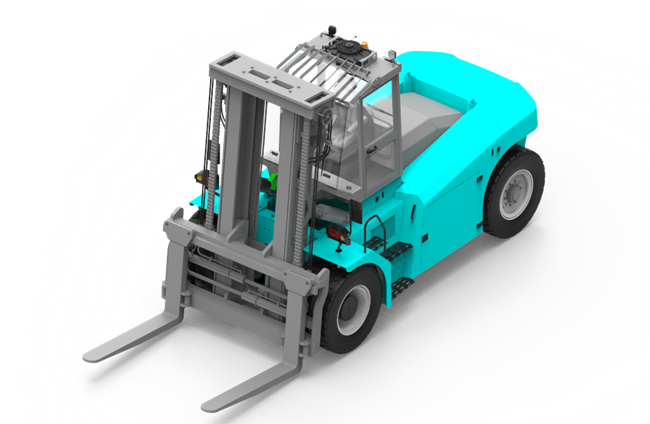

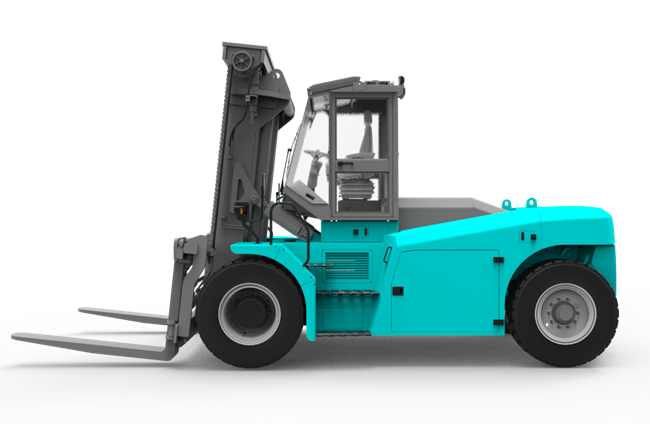

Factory Supply High Capacity 18t FB180 Lithium Battery Forklift Imported Electrical Controller with Fork Length 1820mm

Date: 2022-06-01 View:

Innovative Multi-function Lithium Battery Forklift FB180 Air Tires with Load Centre 900mm

Excellent Mast View

Equipped with optimized design whole view mast, piping on both external sides, provide excellent front view for drivers.Two battery sink-type layout innovation design in the middle of chassis which gives the driver excellent rear view.
Comfortable Driving Space
Ergonomic driving layout design which create a good,comfortable and convenient operating experience for the drivers.
>Tilt cylinder sinking design:
>Inclination adjustable small diameter steering wheel.

Efficient Driving System

Advanced dual motor driving and dual pump power system, compact structure, better driving and climbing performance,lager torque, more powerful output.
>Italy imported DCASPPA low noise gear pump;
>Maintenance-free multi-disc wet braking system, full hydraulic power braking, equipped with excellent large-capacity bladder accumulator, excellent performance in driving and emergency braking;
>German original imported DSCHABMULER (Shaber Muller) maintenance-free AC motor, strong torque, energy saving and high efficiency.

Product parameters
Power Type
Rated Capacity kg 18000
Lift Height mm 3000
Load Centre mm 900
Mast Tilt Angle Deg 6/12
Turning Radius mm 5300
Battery Type
Lithium iron phosphate
Battery Voltage V/Ah 608/346
Operating pressure Mpa 20
Tire Type
Air/Solid tires
Driving Type
