Innovative Muti-functional FD38(T) 3.8ton Powered Diesel Forklift with Wide-view 2-Stage 3meter mast

Date: 2022-05-13 View:

 Automatic Intelligence Control System FD38(T) 3.8ton Diesel Forklift with Wide-view 2-Stage 3meter mast



High Security Performance
The whole system comes standard with intelligent start system, vehicle hanging gear start preventing, improve safety and extend the service life of the gearbox.
> Seat with belt, provide a more comprehensive security for the driver.
> Overhead guard with high-strength steel plate stamping molding.



Reliable Lifting System

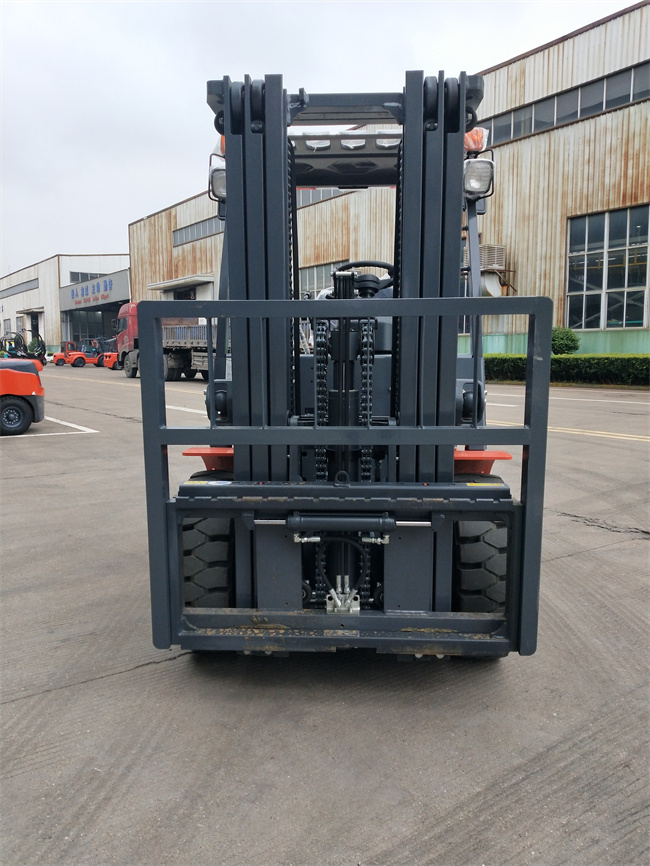

Wide-view mast design, providing superior vision, making the operation more security.



High Performance Hydraulic System
Equipped with load sensing priority hydraulic system, flexible steering, mast lifting speed increased by 20%.



Comfortable Driving Space

Lengthened wheelbase design, reasonable functional layout, super comfortable and large driving space.
Special Design For Rental Customers
To meet the needs of forklift rental users, TCF forklift launched a series of user-friendly configuration.



Super High Ground Clearance

Chassis up to 200mm, the balance the ground clearance up to 220mm, excellent driving performance.



Product Parameter

Model



FD38

Power Type



Diesel

Rated Capacity

Kg

3800

Load Centre

mm

500

Lift Height

mm

3000

Fork Size

mm

1070*125*45

Mast Tilt Angle

Deg

6°/12°

Front Overhang

mm

480

Ground Clearance

mm

110

Length of face to fork

mm

2865

Overall Width

mm

1225

Mast Lowered Height

mm

2175

Mast Extended Height

mm

4160

Overall Guard Height

mm

2090

Turning Radius

mm

2600

Service Weight

kg

4500
