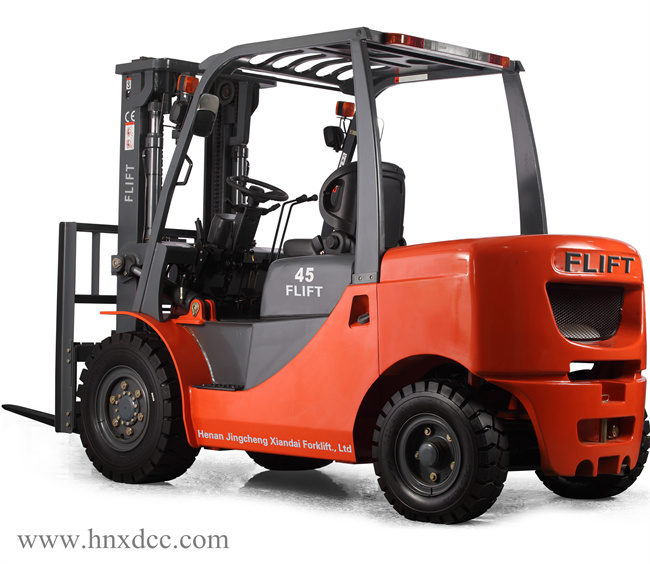

FLIFT Factory supply Chinese engine Diesel Forklift FD45 4.5ton with fork length 1070mm

Date: 2022-05-12 View:

2022 FD45 4.5Ton Forklift Double-row Transmission Diesel Forklift with Wide-view 2-stage 3meters mast


High Security Performance

> The whole system comes standard with intelligent start system, vehicle hanging gear start preventing, improve safety and extend the service life of the gearbox.
> Seat with belt, provide a more comprehensive security for the driver.
> Overhead guard with high-strength steel plate stamping molding.



Reliable Lifting System

Wide view mast design, providing superior vision, making the operation more secure.
>High-strength alloy channel steel (20MnSiv), the performance is improved by 20% compared with ordinary gantry channel steel;
>Three-section fully free gantry pipeline design, with the same field of view as the two-section gantry;
>The main side rollers are designed independently.



Performance Hydraulic System

The dual-pump confluence hydraulic system is adopted, and the hydraulic control valve integrates the active diversion technology to improve the working efficiency and reduce the energy consumption of the whole machine.
>Tilt cylinder, lift cylinder and steering cylinder are equipped with imported oil seals;
>The hydraulic system is equipped with large-capacity oil suction and oil return filters as standard to ensure long-lasting and efficient operation of the hydraulic system.



Variety Kinds Of Options

In order to meet different transport and operating conditions, 4.5T series forklifts provide a wide range options.
>Provide diesel, gasoline, LPG fuel power;
>Provide two types of transmission, mechanical and hydraulic;
>Overhead guards of various heights.
Engine Exhausting And Braking System
> Engine intake with high independent channel, dust prevent at the same time effectively enhance the engine intake, so that the engine can burn more fully.
> Cooling system meet the requirements of the China I standard. The inter-cooling, scattered water, oil scattered are independent layout,which greatly increase the engine, gearbox and other core components quality.
> Standard high-performance vacuum power, full hydraulic power brake system, effectively enhance the reliability of driving and emergency stop.

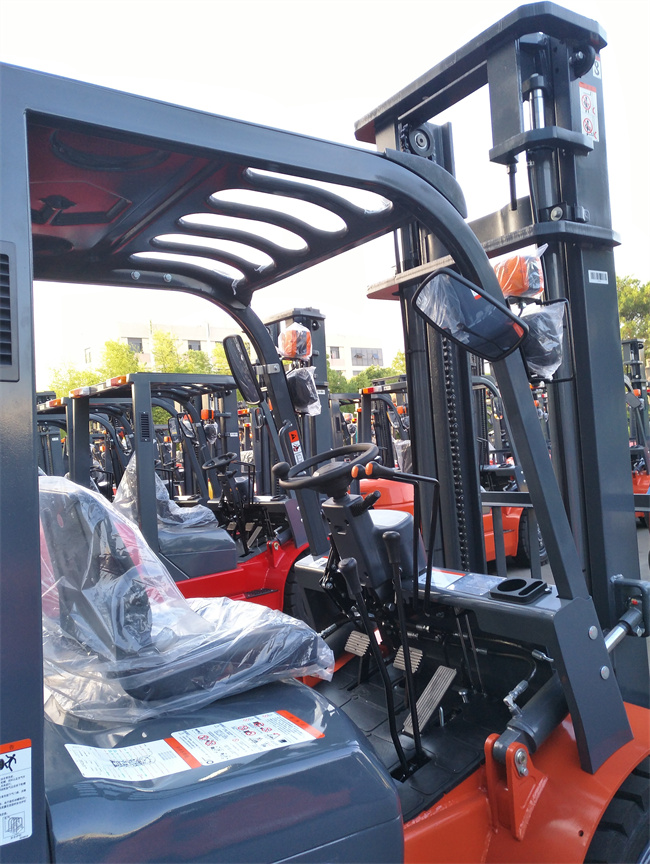

Comfortable Driving Space

Comfortable driving experience, reasonable functional layout, which ensures the operator a long time comfortable and security operation.
>The rear bottom plate adopts an integral pin-type structure, which can be easily disassembled without tools, which greatly improves the convenience of daily maintenance and repair;
>Large open anti-skid pedals, increase the operating space of the legs, reduce the height of getting on the car, and make the operator get on and off the car more convenient and safe;
>Hydraulic joystick designed on the right can provide up to 5 kinds of gantry control functions.



Product Parameters

Model
FD45
Power Type
Diesel
Rated Capacity kg 4500
Load Centre mm 500
Lift Height mm 3000
Fork Size mm 1070*15055
Mast Tilt Angle Deg 6°/12°
Front Overhang mm 570
Ground Clearance mm 170
Length to face of Fork mm 3245
Overall Width mm 1430
Mast Lowered Height mm 2270
Mast Extended Height mm 4110
Overhead Guard Height mm 2265
Turning Radius mm 2910
Service Weight kg 6680
