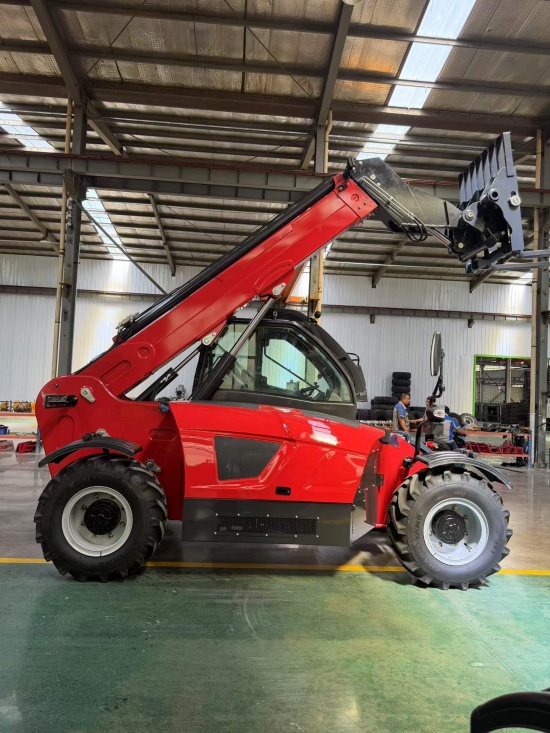

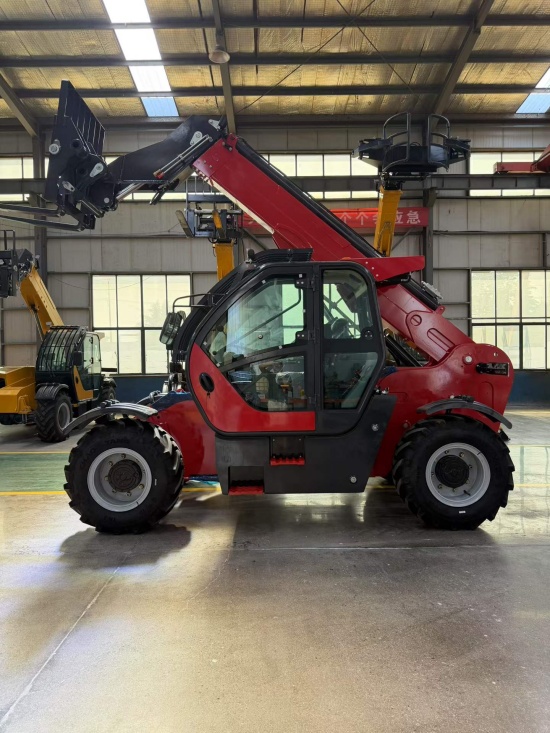

2.5T Telahandler Forklift with Chinese xinchai EU-V engine

Our FLIFT forklift has just released the latest 2.5t telehandler forklift with the compact overall size. Euqip with the standard 5850mm telescopic boom.
Simultanously equip with the Chinese Yuchai Diesel Engine with the 55.8kw power. The Emission Stndard meet the EU-V requirement.



Let’s see the detailed  2500kg telehandlerr forklift configurations:

Model	TD-625
Rated Load Capacity	2500Kg
Maximum Lift Height	5.85m
Maximum Reach Distance	3.0m
Maximum Gradient Climbing Ability	30%
Breakout Force With Bucket	5000Nm
Drive Form	Four-wheel
Travel Mode	Crab steering, four-wheel steering, two-wheel steering
Dimensions
Total Length (to Fork Frame)	4.0m
b -  Total Width	2.10m
h -  Total Height	2.2m
y -  Wheelbase	2.78m
m -  Ground Clearance	0.33m
B1 -  Cab Width	0.93m
Turning Radius (outer wheel)	4.48m
Track Width	1.8m
Unladen Weight (with Forks)	5500Kg
Standard Tires	12/16.5 (Tubeless)
Standard Forks	1220×120×45
Power configuration
Engine Brand	Yuchai
Emission Standard	EU-V
Number of Cylinders - Displacement	4
Power / Rated Speed	55.8Kw/2200rpm
Maximum Torque	285rpm
Transmission System
Transmission Type	Hydraulic torque converter for travel
Number of Gears (forward/reverse)	4/4 (fully electronic shift)
Maximum Travel Speed	25Km/h
Parking Brake	Hand-controlled air brake parking brake
Driving Brake	Air-over-hydraulic disc brake
Braking Distance	≤7m
Hydraulic System
Pump Type	Gear pump
Valve Type	Hydraulic pilot valve
Anti-explosion Valve Type	Double-acting balance valve
Fork Leveling Mechanism	Hydraulic leveling
Working Pressure	240-260 bar
Tank Capacity
Hydraulic Oil Tank	65L
Fuel Tank	65L
Working System
Maximum Reach Distance	3.0m
Effective Load at Maximum Reach	820Kg±2%
Boom Angle Adjustment Time (empty, lifting)	8-16s
Boom Angle Adjustment Time (empty, lowering)	5-15s
Telescopic Boom Extension Time (empty)	6-18s
Telescopic Boom Retraction Time (empty)	5-15s

 How high can a 2.5 ton telehandler lift?
The FLIFT 2500kg telehandler offers a maximum lifting height of 5,850 mm (5.85 meters), making it ideal for construction sites, warehouses, farms, and industrial material handling. This lifting height enables operators to safely place loads onto elevated platforms, storage racks, or building structures while maintaining excellent stability and productivity.

What is the maximum horizontal reach of the 2.5-ton telehandler, and what is its lifting capacity at full reach?
The maximum horizontal reach of the FLIFT 2.5-ton telehandler is 3,000 mm (3 meters). At this maximum forward extension, the telehandler can safely handle a maximum load of 820 kg. This provides an excellent balance between reach and lifting performance.

What is the service weight of the 2.5-ton telehandler
The service weight of the FLIFT 2.5-ton telehandler is approximately 5,500 kg. This optimized operating weight provides excellent machine stability during lifting and material handling while maintaining good maneuverability across construction sites, agricultural operations, warehouses, and other demanding work environments. The balanced design helps ensure safe performance when lifting heavy loads at various heights and reach distances.

What are the advantages of the 2500kg telehandler's 245–260 bar working pressure?
The FLIFT 2500kg telehandler features a high-pressure hydraulic system with a working pressure of 245–260 bar, providing stronger lifting force and faster hydraulic response. This allows the machine to handle heavy loads more efficiently while ensuring smooth boom operation and precise control. The high working pressure also improves overall productivity and delivers reliable performance in demanding construction, agricultural, and industrial applications.



At FLIFT, we believe a telehandler should deliver more than just lifting performance. That's why our telehandlers are engineered with professional-grade features, including a high-performance hydraulic system, a robust telescopic boom, reliable powertrain, and excellent stability. Every machine is designed to maximize productivity, safety, and durability, helping customers tackle demanding material handling tasks with confidence.
