FLIFT 10 ton Logistic Machine AC Motor FB100 Forklift With A CE Certification

Date: 2022-04-14 View:

 Imported curtis big 10 ton capacity electric forklift with enclosed cab fork positioner


Equipped with optimized design whole view mast,piping on both external sides, provide excellent front view for drivers.


Advance dual motor driving and dual pump power system, compact structure, better driving and climbing performance, lager torque, more powerful output.


Ergonomic driving layout design which create a good, comfortable and convenient operating experience for the drivers.


Configuration two sets high-capacity battery, standard automatic replenishment system; The battery with side take out layout design, easy, convenient and safe for battery replacement.

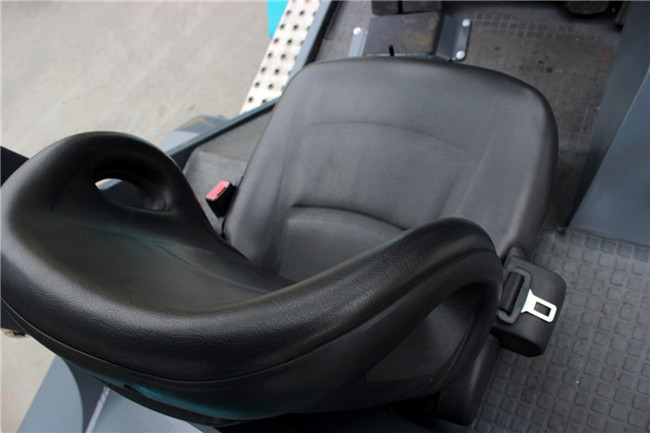

Toyota comfortable seat with safety belt.


Original imported world famous brand controller. After professional adjustment, walking and upgrade control precision and efficiency, it has excellent performance, regenerative braking, ramp braking, fault self-diagnosis and other functions.

FLIFT 10 ton electric forklift specification
Model
FB100
Rated Capacity kg 10000
Load Centre mm 600
Lift Height mm 3000
Fork Size (L*W*T) mm 1520*175*85
Mast Tilt Angle (F/R) Deg 6°/10°
Front Overhang (Wheel Center to fork face) mm 750
Tread (F/R) mm 1650/1700
Ground Clearance (Bottom of mast) mm 210
Fork Spread (Min./Max.)
515/2055
Length to face of fork(Without fork) mm 4480
Overall Width mm 2270
Mast Lowered Height mm 2810
Mast Extended Height(With backrest) mm 4550
Overall Guard Height mm 2650
Turning Radius(outside) mm 3850
Min. insecting aisle mm 3200
Travel(Empty load) km/h 15
Lifting(Full load) mm/s 260
Max. Gradeability % 10
Wheel Base mm 2850
Service Weight kg 16710

FLIFT forklift CE approved:
