FLIFT new style imported electrical controller fork length 1520mm 10ton FB100 electric forklift truck with pneumatic tires

Date: 2022-04-12 View:

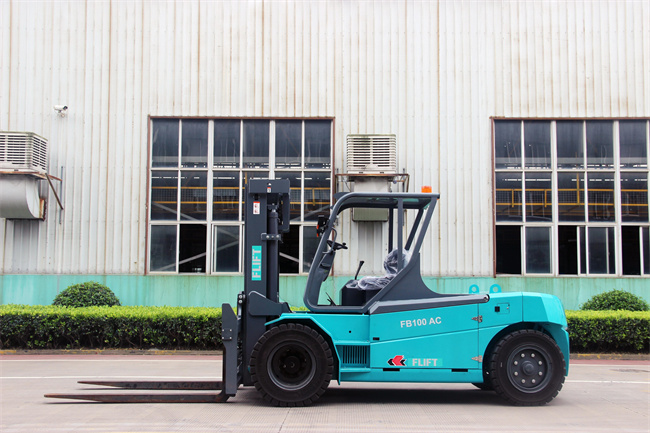

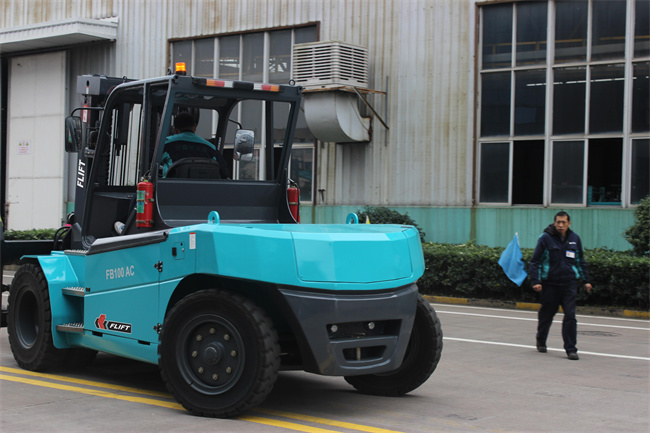

Multi-function 4 wheel 10Ton FB100 fork length 1520mm Electric Forklift Truck with Imported Electrical Controller for Sale



Excellent Mast View
Equipped with optimized design whole view mast, piping on both external sides, provide excellent front view for drivers.Two battery sink-type layout innovation design in the middle of chassis which gives the driver excellent rear view.



Efficient Driving System
Advanced dual motor driving and dual pump power system, compact structure, better driving and climbing performance,lager torque, more powerful output.
>German original imported KESSLER (Kessler) axle box integrated high-performance drive system;
>Italy imported DCASPPA low noise gear pump;
>Maintenance-free multi-disc wet braking system, full hydraulic power braking, equipped with excellent large-capacity bladder accumulator, excellent performance in driving and emergency braking;
>German original imported DSCHABMULER (Shaber Muller) maintenance-free AC motor, strong torque, energy saving and high efficiency.




Comfortable Driving Space
Ergonomic driving layout design which create a good,comfortable and convenient operating experience for the drivers.
>Tilt cylinder sinking design:
>Inclination adjustable small diameter steering wheel.




Product Parameters
                           Model                 FB100
                       Power Type                 Electric
                     Rated Capacity                    kg               10000
                        Load Centre                    mm                 600
                          Lift Height                    mm               3000
                          Fork Size                    mm            1520*175*85
                       Mast Tilt Angle                    Deg                6°/10°
                     Front Overhang                    mm                 750
                             Tread                    mm               1650/1700
                   Ground Clearance                    mm                  210
                        Fork Spread                    mm                515/2055
                 Length to face of fork                    mm                  4480
                      Overall Width                    mm                  2270
                 Mast Lowered Height                    mm                  2810
                 Mast Extended Height                    mm                  4550
