Low Cost All Way Battery Forklift Truck 1.5 Ton China Mini Electric Forklift Price with CE Certification

Date: 2022-04-12 View:

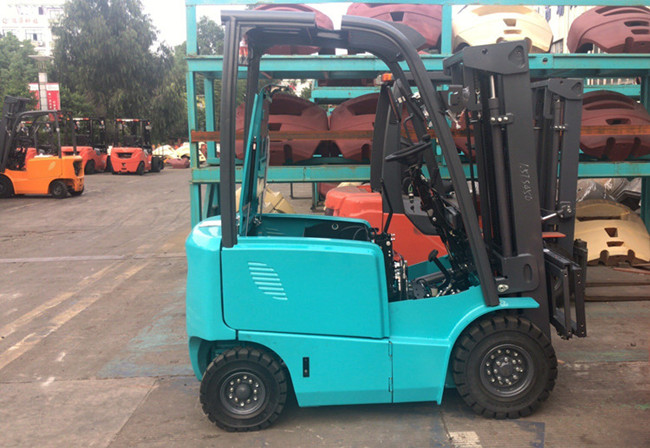

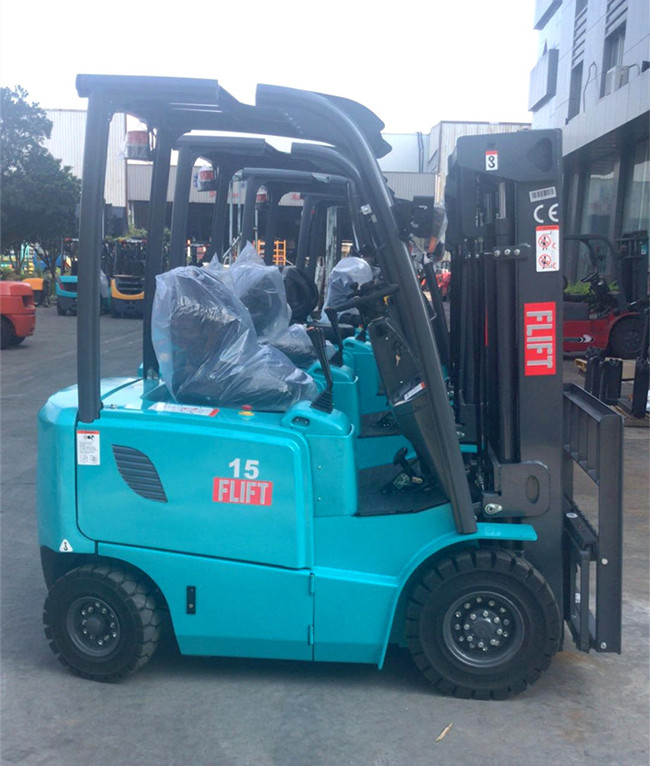

  FLIFT 4 wheel mini 1.5 ton electric forklift with 4.5 meter container mast price


Original imported world famous brand controller. After professional adjustment, walking and upgrade control is precision and efficiency, excellent performance. The forklift with regenerative braking, ramp braking,fault self-diagnosis and other functions.


Using dynamic load sensing priority steering system, steering response more quickly, driving more smoothly.


Ergonomic full-scale operation space layout optimization, which offers operator excellent,comfortable and convenient operating experience.

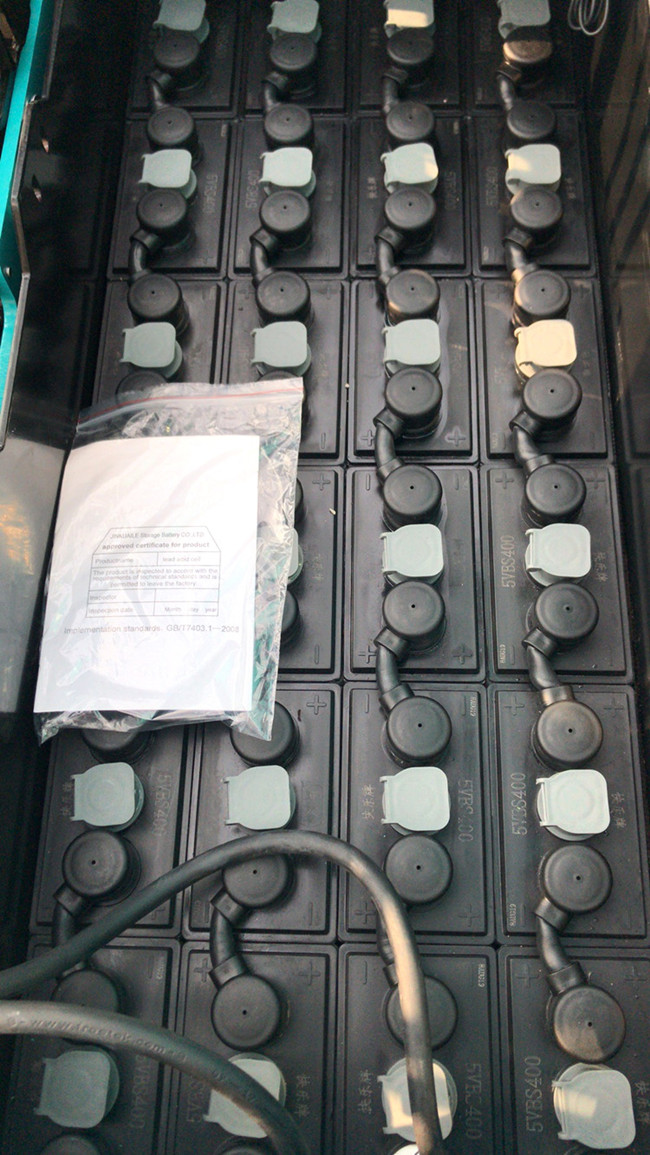

Fully open hood, it can quickly remove from both side. Hinge design frame side door. The using of advanced design concept of battery replacement program, gives fast and convenient maintenance.


Advanced H-type remote drive unit, compact structure, lower gravity center, more reasonable layout, more stable driving.

FLIFT 1.5 ton electric forklift specification
Model
FB15
Rated Capacity kg 1500
Load Centre mm 500
Lift Height mm 4500
Fork Size (L*W*T) mm 920*120*35
Mast Tilt Angle (F/R) Deg 6°/6°
Front Overhang (Wheel Center to fork face) mm 420
Tread (F/R) mm 890/920
Ground Clearance (Bottom of mast) mm 115
Fork Spread (Min./Max.)
240/970
Length to face of fork(Without fork) mm 2150
Overall Width mm 1090
Mast Lowered Height mm 2045
Mast Extended Height(With backrest) mm 5435
Overall Guard Height mm 2170
Turning Radius(outside) mm 1950
Min. insecting aisle mm 2050
Travel(Empty load) km/h 15
Lifting(Full load) mm/s 280
Max. Gradeability % 15
Wheel Base mm 1380
Service Weight kg 3070

FLIFT forklift CE approved:
