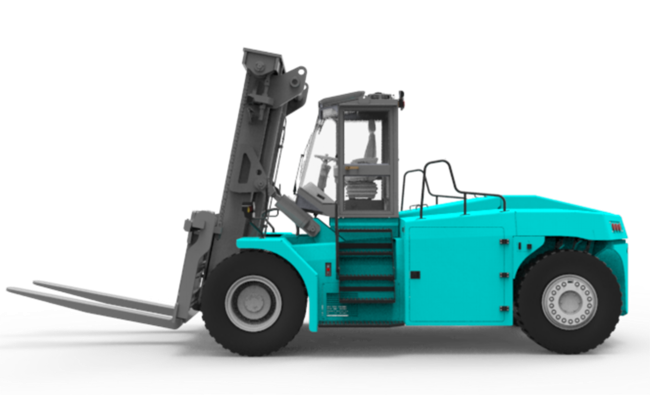

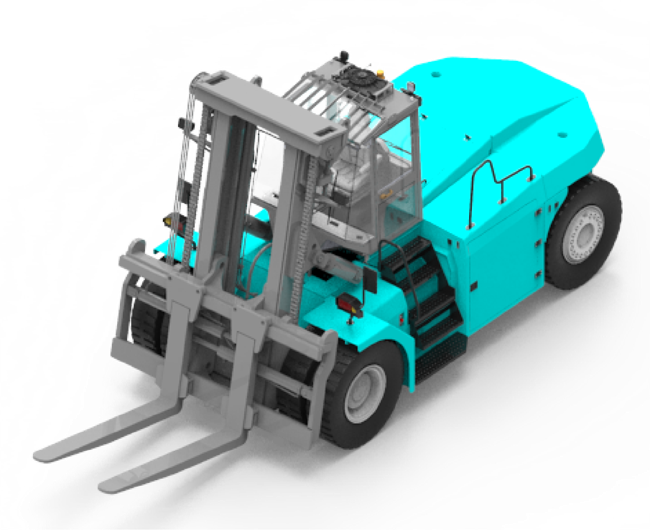

High Capacity Chinese Electrical Controller Lithium Battery Forklift FD250 25t with Pneumatic Tires

Date: 2022-05-31 View:

Multi-function Factory Professional Lithium Battery Forklift Load Centre 1200mm FB250 25t with Chinese Battery

Excellent mast view

​Equipped with an optimized design of the panoramic mast, with piping on both sides, provides the driver with a good frontal view.​ The central chassis adopts the innovative design of dual battery water tank layout, providing an excellent rearview mirror for the driver.

​Efficient driving system

Advanced dual motor drive and dual pump power system, compact structure, better drive and climb performance, greater torque, stronger output.
 > Maintenance-free multi-disc wet braking system, full hydraulic power braking, equipped with excellent large-capacity air bag accumulator, excellent driving and emergency braking performance;
 > Domestic advanced maintenance-free AC motor, strong torque, energy saving and efficient.

Comfortable driving space
​Ergonomic driving layout design, for the driver to create a good, comfortable, convenient operation experience.
​Inclined cylinder sinking design:
 > Tilt adjustable for small diameter steering wheel.

Product Parameters

Power Type
Lithium Battery
Driving Type
Rated Capacity kg 25000
Load Centre mm 1200
Service Weight kg 37870
Tire Type
Air Tirese
Wheel number X=Drive wheel(front/rear)
Lift Height mm 4000
Fork Size mm 2420x250x120
Mast Tilt Angle(F/R) Deg 5/10
Mast Lowered Height mm 4000
Free lift distance mm /
Mast Extended Height mm 6005
Backrest Height mm /
Fork adjust distance mm 810-2670
