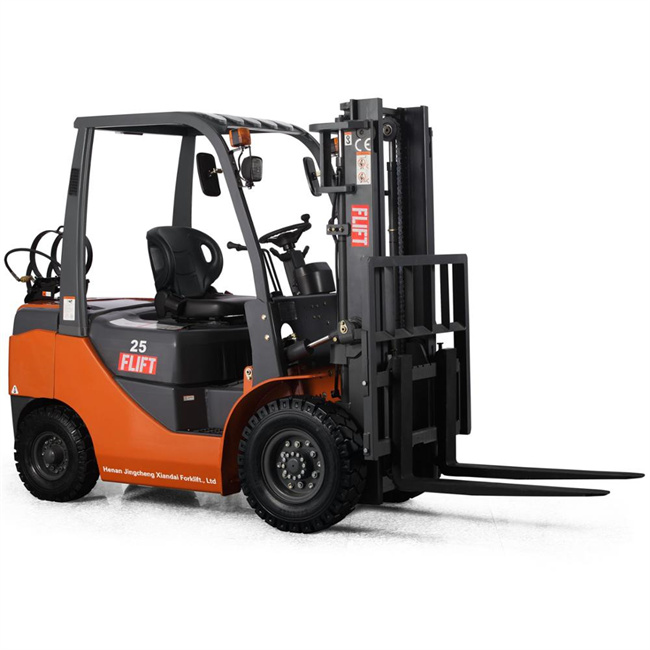

Advanced Technology 2.5 ton FY25 Pneumatic Tries LPG Gasoline Forklift Truck with Fork Length 1070 mm

Date: 2022-06-02 View:

FY25 2.5ton LPG Gasoline Forklift Japanese GCT(Nissan Gasoline)K21 with Wide-view 2-stage 3meter mast





High Strength Overhead Guard

The overhead guard adopts the high strength steel sheet to press molding, providing more sophisticated security for the driver, it can also prevent wind and rain.



Reliable Lifting System

Wide view mast design, ensure the driver has an excellent view, which makes loading and unloading operations more secure and efficient.
>High-strength alloy channel steel (20MnSiv), the performance is improved by 20% compared with ordinary gantry channel steel;
>Three-section fully free gantry pipeline design, with the same field of view as the two-section gantry;
>The main side rollers are designed independently.



High Performance Hydraulic System

Load sensing priority steering hydraulic system design, flexible steering, mast lift speed increased by 20%;
>Tilt cylinder, lift cylinder and steering cylinder are equipped with imported oil seals;
>The lifting cylinder comes standard with the lowering buffer function.



Variety Kinds Of Options

FLIFT forklifts provide users with a variety of power options. Different Power Engines.
> Can provide diesel, gasoline, LPG, LNG, CNG fuel power;
>Steering axle can choose steel plate welded axle or one-piece cast axle.



Comfortable Driving Space

All accessories like engine, gear box are supported by domestic and world famous brand, high quality, reliable after-sales.
>Large opening iron stamping hood (opening angle can reach 70%), built-in heat insulation and sound insulation molding lining;
>Large open anti-skid pedals make it more convenient and safe for the operator to get on and off;
>Optional instrument panel cover.



Product Parameters
Model
FY25
Power Type
LPG&Gasoline
Rated Capacity kg 2500
Load Centre mm 500
Lift Height mm 3000
Fork Size mm 1070*120*40
Mast Tilt Angle Deg 6°/12°
Front Overhang mm 470
Ground Clearance mm 120
Length to face of fork mm 2600
Overall Width mm 1150
Mast Lowered Height mm 2055
Mast Extended Height mm 4050
Overhead Guard Height mm 2070
Turning Radius mm 2310
Service Weight kg 3700

Certificate


The Video of Product
