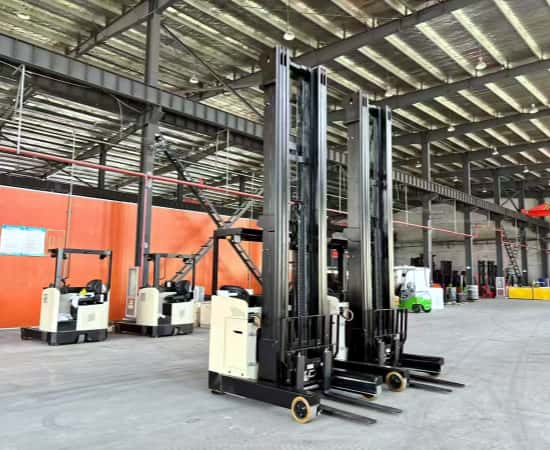

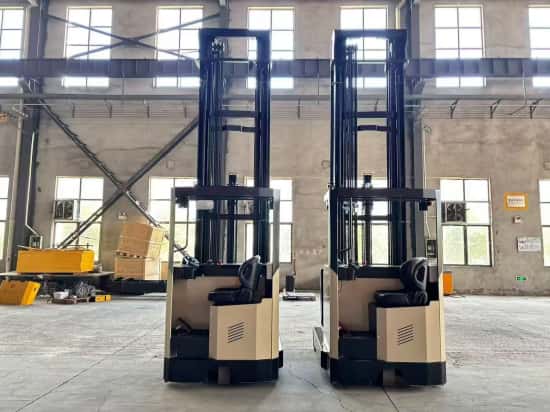

Heavy Duty 3 Ton Lithium Battery Reach Forklift for High Rack Warehouse Storage


3Ton Electric Reach Truck Series Main Configurations

Rated Load Capacity: 3000 kg，
Lifting Height: 11 meters，
Lithium-Ion Battery: 51.2V/ 450Ah，
Charger: 48V/ 200A，
Side Shift Range: ±60mm，
Fully AC-powered, Thumb Switch,
Electromagnetic Hydraulic Valve Assembly，

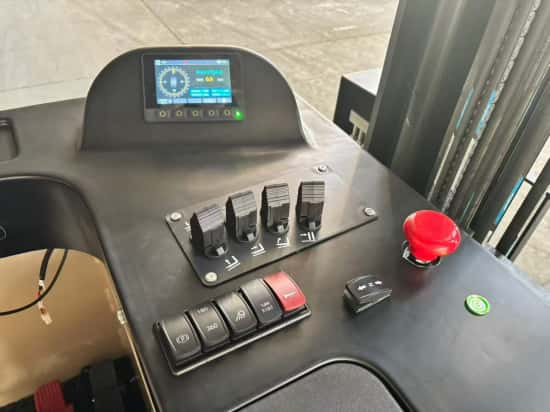

EPS, OPS, Curtis Control System,
Wireless Camera and Monitor,
Built-in Side Shifter.

OPS improves the working efficiency of electric reach trucks by avoiding unnecessary idling and power waste, effectively extending battery working time and lowering frequent charging downtime.
It keeps the truck in quick standby mode, so the machine can resume operation right after the operator returns,
greatly simplifying daily workflows and shortening working cycle time in narrow warehouse aisles.
By locking travel and lifting functions when the operator is not in position, the OPS system effectively avoids safety accidents, equipment damage and unexpected downtime.
When matched with the Curtis control system, OPS further optimizes traveling speed and load stability,
enabling smoother and faster high-level stacking operations and raising overall warehouse handling throughput.

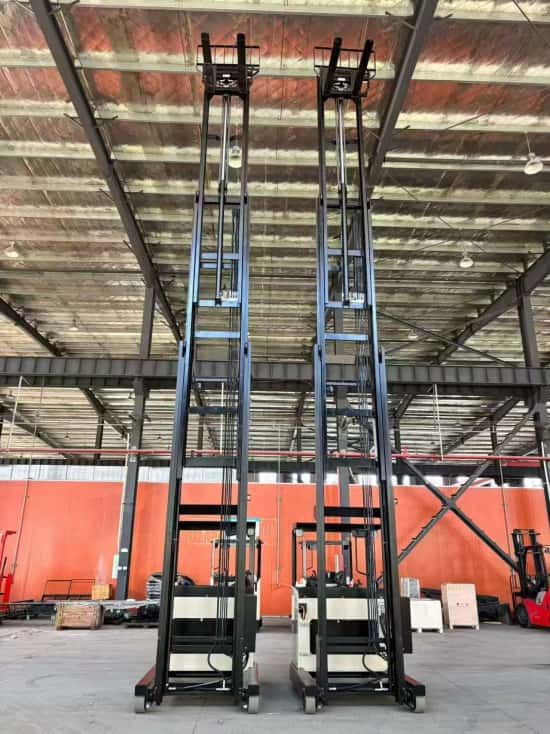

What’s the maximum lifting hieght of your FLIFT 3ton Electric reach truck?

As usually, our prevailling lifting height is from 4.5m-6.0m with the 3 stage mast. But we can customize the lifting height as client’s demand. Now the maximum lifting height can be cutomized up to 11m.

By the way, could i know the maximum load capacity at the 11 m height ?
In addition, let me know the laod capacuty at the different height correspondingly.

But the precondition is that the goods size must be within the range of 1000mmx 1200mm. At the 11m height the corresponsing load capacity is 900kg.
At the 10m height, the load capacity is 1000kg, but at the 4.5m height, we can completely load 3ton weight.

By the way, can we customize the appearance color for the electric reach truck?

Yes, we support this service, in addition, the service is free, u just provide the colour code for us.
