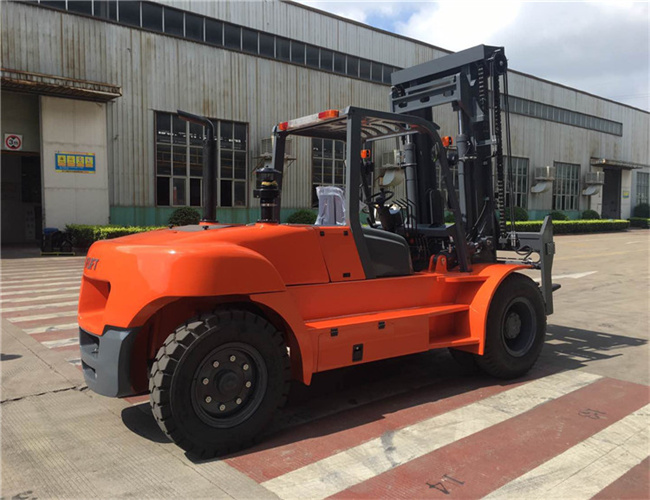

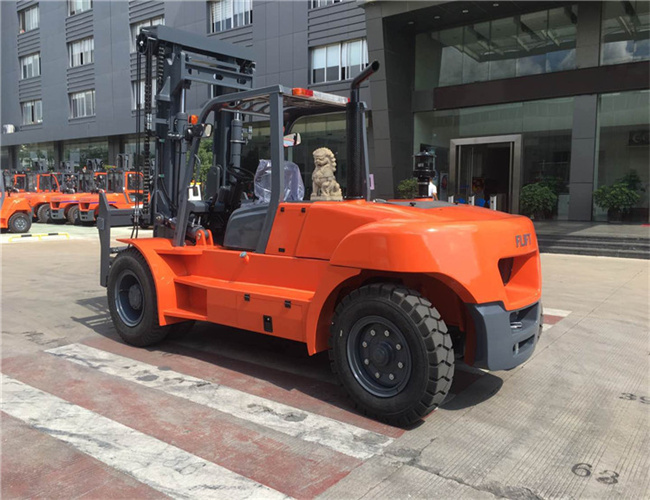

Factory Supply FD120 Rated Capacity 12000kg Diesel Forklift with Durable Tires

Date: 2022-07-05 View:

Big Tonnage Diesel Forklift FD120 Rated Capacity 12000kg Chinese Engine with Wide-view 2-Stages 3m Mast



Security

Intelligent starting system, forklift hanging gear start prevent function,it improves the operation safety and longer gearbox service life.
Hydraulic power brake system, large capacity accumulator, reliable driving and emergency braking.
Overhead guard with high-strength steel plate one stamping, provide driver more sophisticated security.
Standard equipped button parking brake, effectively prevent the handbrake from accidentally release.



Comfort

Ergonomic design, rational operating device layout, equipped with adjustable seats (adjustment up to 150mm) and steering wheel.
The 10t and 12t model with fork positioner, easy to adjust the fork
distance; The 5-8tforlift have fork positioner for option.
A forklift models standard with hydraulic seeing system, easy and comfort to operate.



Advancement

World famous imported diesel and gasoline engine, Japan Okamura
gear box and wet drive axle for options.
Intelligent LCD instrument, CAN,Controller Area Network, real-time display of engine and forklift's working information.



Convenient Maintenance

Reasonable Body parts, large space, hood open angle of up to 70°,easy maintenance.

Product Parameters
Model
FD120
Power Type
Diesel
Rated Capacity
12000
Load Centre mm 600
Lift Height mm 3000
Fork Size mm 1520*180*100
Mast Tilt Angle Deg 6/12
Front Overhang (Wheel Center to fork face) mm 770
Ground Clearance (Bottom of mast) mm 250
Length to face of fork(Without fork) mm 4700
Overall Width mm 2200
Mast Lowered Height mm 3080
Mast Extended Height(With backrest) mm 4510
Overall Guard Height mm 2590
Turning Radius(outside) mm 4700
