Top Quality 3-Way Electric Pallet Stacker For Super Narrow Aisle Work

Date: 2022-03-15 View:

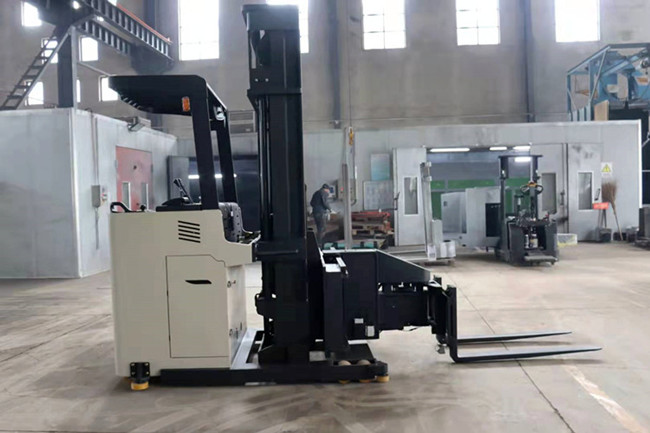

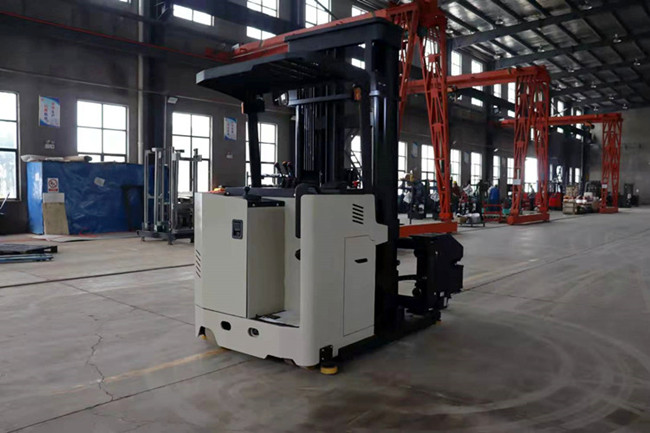

 New design narrow aisle stacker truck 3-way pallet stacker for sale


3-way pallet stacker do not need to turn, and the stacking and taking of goods on both sides ,it can be realized through the rotation of the fork, effectively increasing the storage capacity.


Advantage:
Configuration and Performance
1. Wide-angle field of view, high-strength shock-absorbing gantry;
2. American CURTIS brand drive control system;
3. The minimum stacking channel is 1480mm, dedicated to narrow roadway;


4. Electronic steering, light and silent;
5. Shimadzu brand low-noise hydraulic pumps and valves;
6. Multi-function instrument and drive wheel position display;
7. Electromagnetic and regenerative braking system;


8. The rotation angle of the fork moves sideways by 180°;
9. Line fault detection, error code diagnosis;
10. Automatic alignment and guidance when walking.



FLIFT 1.5 ton 3-way electric pallet stacker specification
Model
CSD15
Power
Battery
Type
Seated
Rated capacity kg 1500
Load center mm 500
Front overhang mm 655
Wheelbase mm 1700
Service weight (with battery) kg 4650
Tire type
PU
Tire size, load bearing side mm 140*127
Tire size, drive side mm 343*135
Wheels number, F/R (X=drive wheel)
4/1X
Wheel base, load bearing side
1280
Mast Lowered Height mm 2565
Lift height mm 3000

FLIFT forklifts CE approved:
