Customization Service Walking Type Electric Stacker with Clip Attachment

Date: 2022-08-18 View:

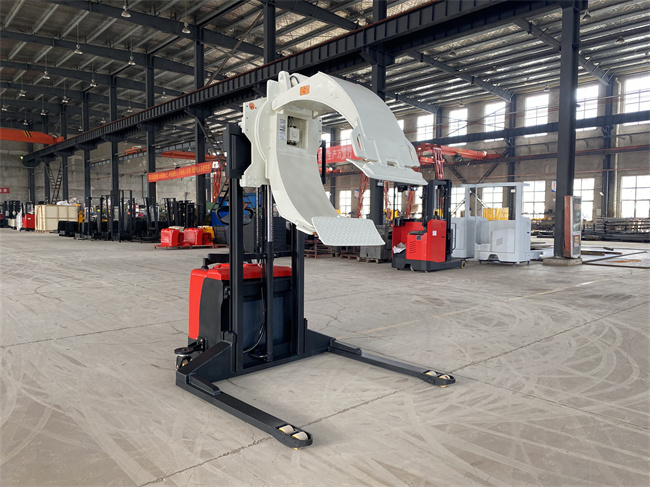

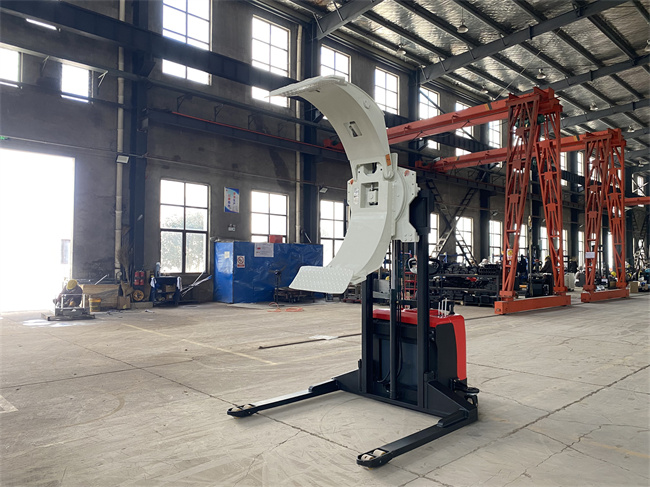

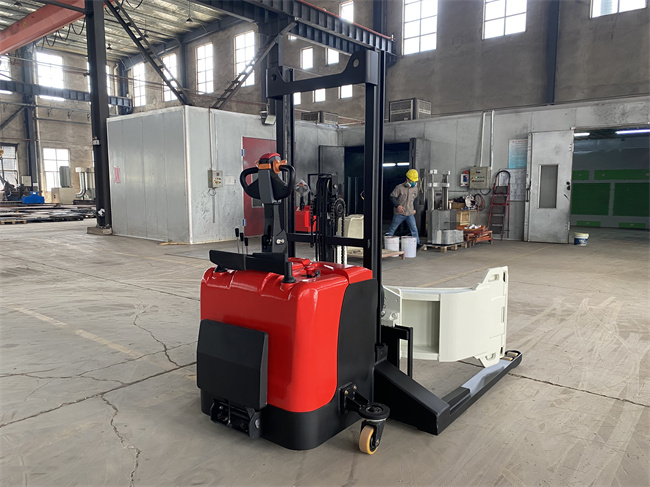

Innovative New Design Walking Type Sacker with customized Clip Attachment

Advantages:
Double cylinders, wide view frame, fork forward tilt back, multi-function handle, electronic steering, lightweight, imported low noise hydraulic pump, AC drive, carbon brush, motor maintenance free, electromagnetic, regenerative braking system, lift limit, long life induction switch, body shock absorption system/pedal, handle shock absorption.

Security:
Bend automatic deceleration device, drive stepless speed regulation, controller multiple automatic protection system, emergency reverse anti-collision/emergency brake device, cylinder safety cut-off valve.


Product Parameters
Model
CDD Series
Dynamic Type
Storage Battery
Operation Type
Walking handle type
Rated Capacity kg 1000/1500
Load Center mm 500
Tyre mode   Front/Rearv
PU
Wheel Bearing mm 85*70
Driving wheeling mm 210*70
Auxiliary Wheel mm 130*55
Number of wheels
2/1X+1
Mast mode
2 Stage
Standard lifting height mm 3000
Free Lifting Height mm 0
Mast Lowered Height mm 2080
Mast Extended Height mm 3560

Certification
