FLIFT 5 Ton Lithium Forklift Equipped with Three-Way Fork Attachment for Flexible Warehouse Handling

FLIFT has recently completed a customized 5-metric-ton lithium-ion forklift equipped with a three-way fork attachment, providing customers with a more flexible solution for pallet handling and warehouse operations.

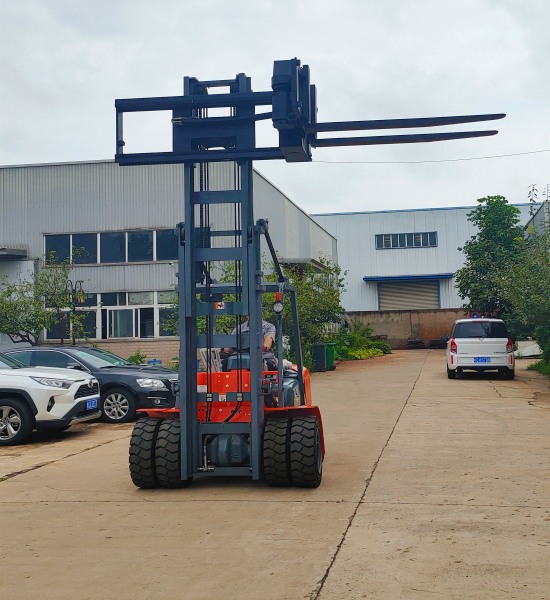

Unlike a conventional forklift fork carriage, the three-way fork attachment provides side-shifting and 180-degree fork carriage rotation. This allows the operator to pick up and place pallets from different directions without repeatedly repositioning the entire forklift.

The forklift is equipped with a three-stage 6-meter mast. With the three-way fork attachment installed, the complete forklift can handle a 1.5-ton load at a lifting height of 6 meters.
This combination brings together the high nominal capacity of a 5-ton electric forklift, the clean and efficient operation of lithium-ion power, and the multidirectional pallet-handling capability of a three-way fork attachment.

Why Combine a 5 Ton Lithium Forklift with a Three-Way Fork Attachment?

In many warehouses, lifting capacity is only part of the material-handling challenge.Operators may also need to retrieve pallets from different directions, work around restricted maneuvering space, or reduce the number of forklift movements required when loading and unloading goods.
For these applications, FLIFT configured the 5-ton lithium forklift with a three-way fork attachment.

The attachment provides two major hydraulic functions:
Fork carriage side shift and 180° fork carriage rotation

Instead of relying solely on steering and repositioning the truck, the operator can hydraulically adjust the fork carriage to approach the pallet from different directions.
This can make pallet positioning more convenient in warehouses, production facilities, logistics centers, and other industrial material-handling environments.

1.5 Ton Load Capacity at 6-Meter Lifting Height

One of the most important specifications of this customized forklift is its 1,500 kg load capacity at a 6-meter lifting height when equipped with the three-way fork attachment.
This point is particularly important when selecting a forklift with a special attachment.

A forklift's nominal capacity does not automatically represent the amount of weight it can safely lift under every operating condition.
Mast height, attachment weight, attachment dimensions, load center, and the resulting center of gravity all affect the actual load capacity of the complete truck.

The three-way fork attachment itself weighs approximately 642 kg, excluding the forks. It also changes the load center compared with a standard fork carriage.
Therefore, FLIFT evaluates the complete forklift-and-attachment configuration rather than considering only the forklift's nominal 5-ton capacity.

For this configuration:

Forklift rated capacity: 5,000 kg
Maximum lifting height: 6,000 mm
Three-way attachment rated capacity: 1,600 kg
Complete truck load capacity at 6m: 1,500 kgThis provides customers with more practical information when selecting equipment for high-level pallet handling.

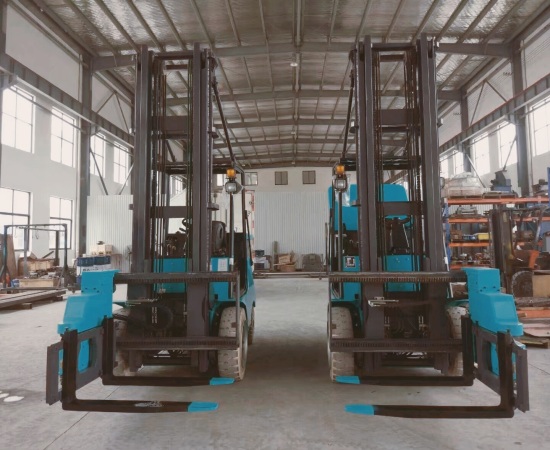

Three-Way Fork Attachment Specifications

The customized three-way fork attachment is designed for 1,200 × 1,200 mm pallets and provides both lateral movement and fork carriage rotation.

The attachment is connected to the forklift's hydraulic system through two external hydraulic lines.

The combination of side shift and 180° rotation gives the operator greater flexibility when aligning the forks with pallets.


5 Ton Lithium-Ion Forklift Specifications

The base truck is a 5-ton lithium-ion counterbalance forklift designed for industrial material handling.

Its main specifications include:

Warranty for the Lithium Forklift

FLIFT provides warranty coverage for major components of this lithium-ion forklift.The electronic control system is covered for 2 years or 3,000 operating hours, whichever comes first.The lithium battery is covered for 5 years or 10,000 operating hours, whichever comes first.


What Is a Three-Way Fork Attachment?

A three-way fork attachment is a specialized forklift attachment that allows the fork carriage to change its working direction hydraulically.
In this FLIFT configuration, the attachment combines side shifting with 180° fork carriage rotation.
This means the forks can be repositioned to handle pallets from different directions, giving the operator more flexibility than a conventional fixed fork carriage.

Looking for a Customized Lithium Forklift with a Three-Way Fork?

This 5 ton lithium forklift with a three-way fork attachment demonstrates how a standard counterbalance forklift can be configured for a more specialized material-handling application.
With its 80V 460Ah LiFePO4 battery, 6-meter three-stage mast, 1.6-ton-rated three-way fork attachment, and 1.5-ton load capacity at 6 meters, the complete configuration combines high-level lifting with flexible pallet positioning.
FLIFT can customize lithium forklifts according to different load capacities, lifting heights, pallet dimensions, attachments, battery capacities, and working environments.



When selecting a forklift with a three-way fork attachment, customers are encouraged to provide the cargo weight, pallet dimensions, maximum lifting height, aisle width, and operating conditions.
This allows our engineering team to evaluate the appropriate forklift model, attachment, and residual capacity for the application.


Contact FLIFT for a customized lithium forklift and three-way fork attachment solution for your warehouse or material-handling project.
