General

1

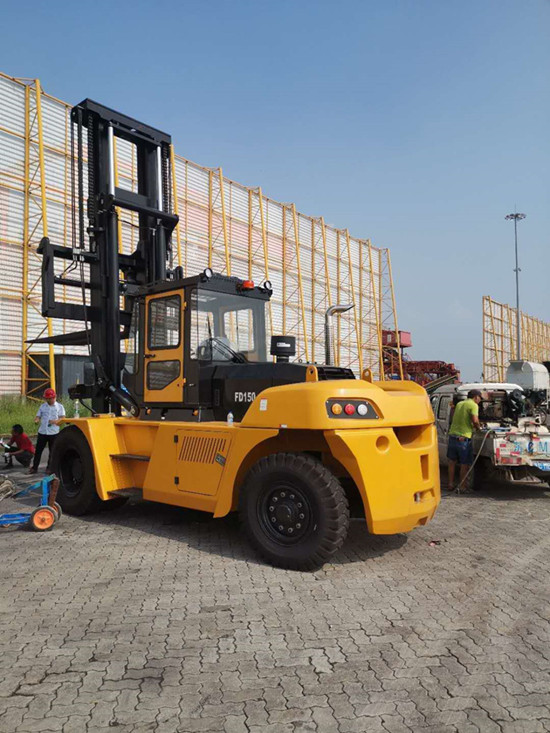

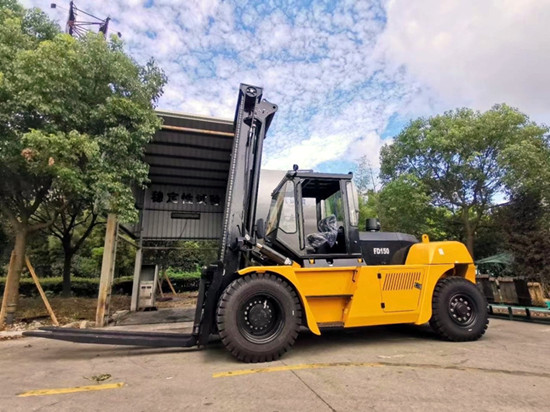

Model

FD150

FD160

2

Brand

FLIFT

FLIFT

3

Power Type

Diesel

Diesel

4

Rated Capacity

kg

15000

16000

5

Load Centre

mm

600

600

Dimension

6

Lift Height

mm

3000

3000

7

Fork Size

L×W×T

mm

1820*200*90

1820*200*90

8

Mast Tilt Angle

F/R

Deg

6°/12°

6°/12°

9

Front Overhang (Wheel Center to fork face)

mm

900

900

Ground Clearance (Bottom of mast)

mm

255

255

11

Overall
Dimension

Length to face of fork(Without fork)

mm

 4960

4960

12

Overall Width

mm

 2490

2490

13

Mast Lowered Height

mm

3170

3170

14

Mast Extended Height(With backrest)

mm

4670

4670

15

Overall Guard Height

mm

2930

2930

16

Turning Radius(outside)

mm

4500

4500

17

Min. insecting aisle

mm

6800

6800

Performance

18

Speed

Travel(Unloaded)

km/h

23

23

19

Lifting (Loaded)

mm/s

380/500

380/500

21

Max. Gradeability

%

20

20

Chassis

22

Vacuum
Tires

Front

12.00-24-20PR

12.00-24-20PR

Rear

12.00-20-18PR

12.00-20-18PR

23

Tread

Front

3250

3250

Rear

1205

1205

24

Wheel Base

mm

1835

1835

25

Service Weight

kg

 18500

20500

Power and transmission

26

Battery

Voltage/Capacity

V/Ah

24V/120AH

24V/120AH

Engine is Optional as demand

 Engine Model Type

Yu Chai

YC6180Z-T21

Yu Chai

YC6180Z-T21

27

Transmission

Rated  output  / r.p.m

Kw

130/2300

130/2300

Rated  torque  / r.p.m

N.m

670/1400-1700

670/1400-1700

No. of Cylinder

6

6

Bore ×Stroke

mm

108×132

108×132

28

Type

Hydraulic

Hydraulic

30

Operating  Pressure

Mpa

16

18

31

Fuel tank capacity

 L

300/350

300/350

32

Displacement

cc

7255

7255
