Counterbalance Electric Stacker China Manufacturer FLIFT High Quality 1000kg Electric stacker

Date: 2022-02-28 View:

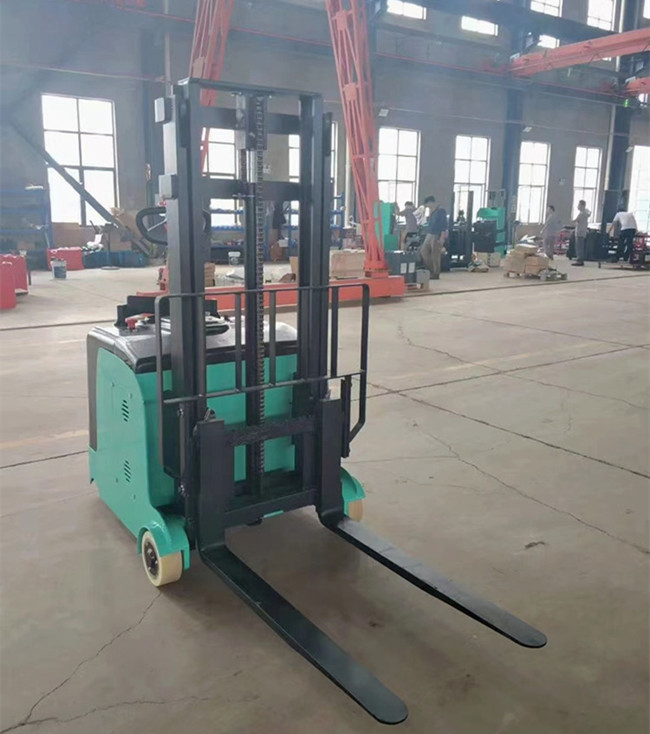

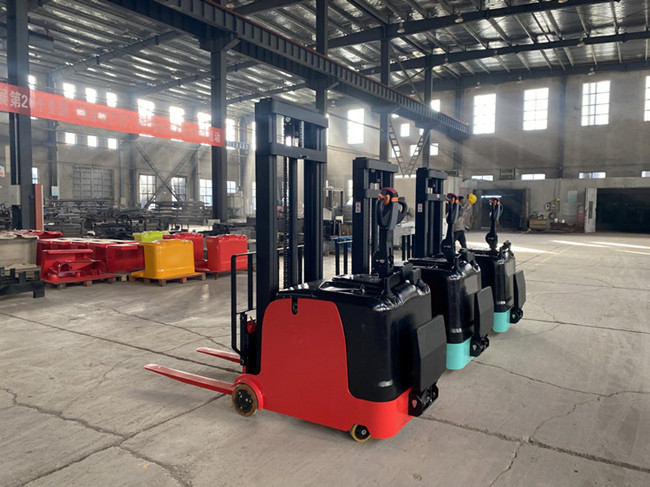

 CE Certificated Approved 1 Ton Counterbalance Battery Operated Pallet Stacker


FLIFT counterbalance electric stacker has the advantages of AC drive, no carbon brush, motor maintenance free, etc.


Fully considering the human Multi-functional integrated handle, each function button is convenient and easy to operate.


The electric counterbalance stacker with body shock absorption system, pedal, handle shock absorption.



About the safety of the FLIFT electric counterbalance stacker:
1. Automatic reduction device for curves;
2. Automatic deceleration for high cargo position of cargo fork;
3. Drive stepless speed regulation;
4. Controller multiple automatic protection system;
5. Emergency reverse anti-collision, emergency brake device;
6. Cylinder safety cut-off valve.

FLIFT 1.0 ton electric counterbalance stacker specification
Model
CDD10B
Operating mode
Stand up
Rated capacity kg 1000
Load center mm 500
Tyre type
PU
Front wheel mm 210*85
Drive wheel mm 230*75
Universal wheel mm 130*55
Tyre number (F/R, X=drive wheel)
2/1X+2
Mast type
Duplex
Mast tilt angle Deg 3/5
Lift height mm 2500
Mast Lowered Height mm 1380
Mast Extended Height(With backrest) mm 3485
Ground clearance mm 70
Overall length mm 2695
Wheel base mm 1200
Front overhang mm 145
Overall width (F/R) mm 990/900
Tread (F/R) mm 895/684
Fork size (L*W*T) mm 1070*100*35
Maximum forks width mm 240-700
Minimum stacking channel 1000*1200mm pallet 3420/3000
Turning radius mm 1500
Travel speed km/h 4.0/5.0
Lifting speed mm/s 80/150
Max. Gradeability % 6/8
Drive motor kw 1.5
Lifting motor kw 2.2
Battery voltage/capacity V/Ah 24/210
Service weight kg 1815
Braking
Electromagnetic
Steering method
Electric

FLIFT forklifts CE approved:
