high quality FLIFT 3 ton rough forklift off-road forklift truck price

Date: 2022-01-25 View:

     3ton FLIFT 4x4 ALL Rough terrain diesel forklift with EPA cummins QSF2.8 engine





Hot sale FLIFT brand forklift can be customized the color as your request

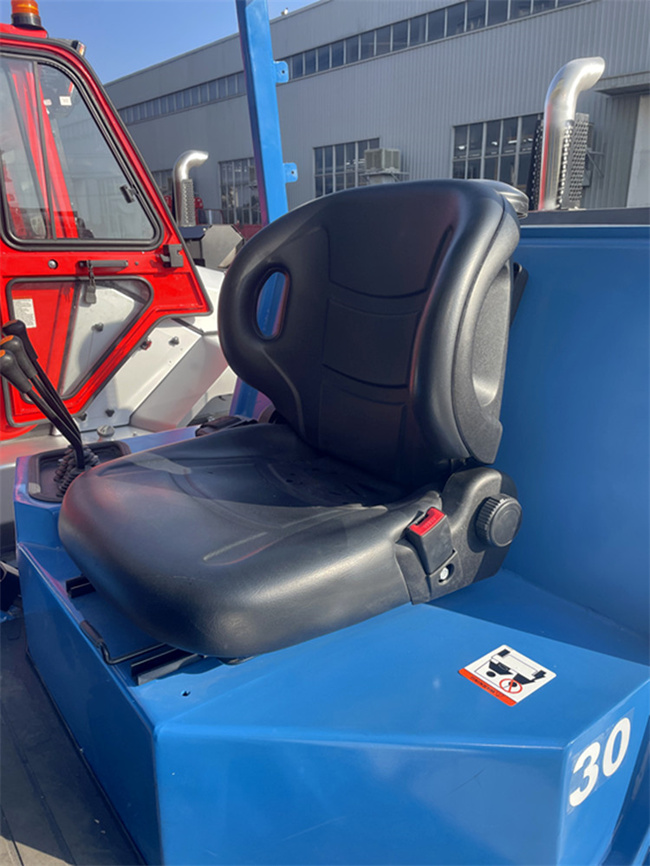

Comfortable seat with seat belt

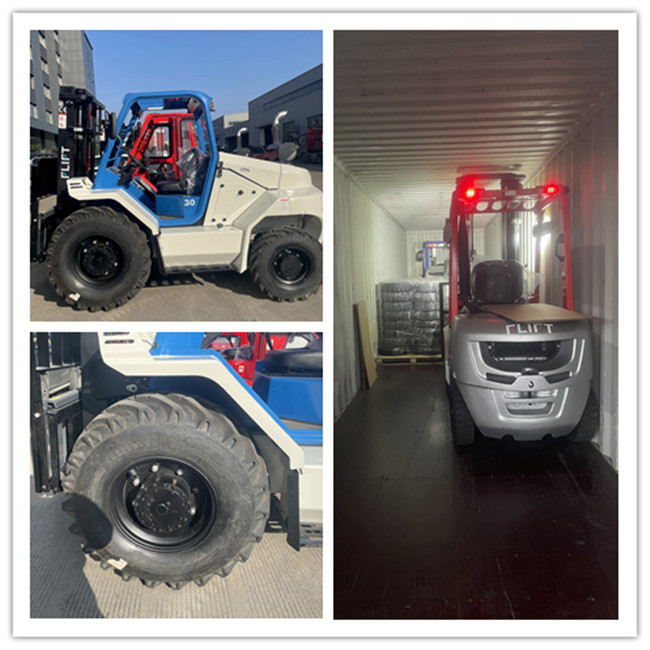

FLIFT rough terrain forklift with long life tubeless pneumatic tires

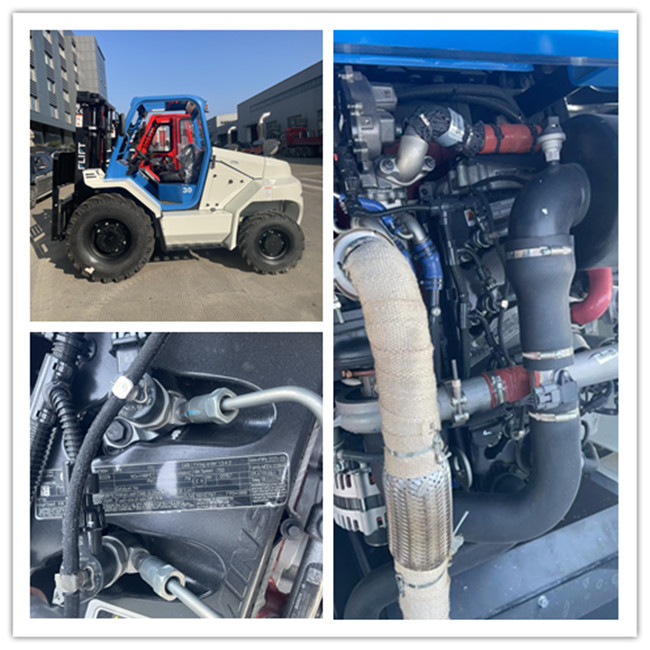

For USA market with CUMMINS QSF2.8 T4C65 EPA T4F engine


Electric tilting cabin,fan heater,air conditioner,high exhaust


 Side shifter or fork positioner or other forklift attachments are optional

3ton rough terrain specification
Model
FD30RT4
Power Type
Diesel
Rated Capacity kg 3000
Load Centre mm 500
Service weight kg 5700
Wheel number
2x/2x
Tyre size(front)
405/70-20-14PR
Tyre size(rear)
10.0/75-15.3-12PR
Front tread mm 1410
Rear tread mm 1484
Wheelbase mm 1990
Fork size(L*W*T) mm 1220*125*45
Mast tilt angle deg 10/12
Lift height mm 3000
Mast lowered height mm 2245
Free lift height mm 125
Mast extended height mm 4260
Length to face of fork mm 3260
Overall width mm 1835
Overhead guard height mm 2250
Front overhang mm 684
Rear overhang mm 607
Turning radius(outside) mm 4380
Ground clearrance mm 270
Min.intersecting aisle mm 3040
Min.right angle stacking aisle width mm 6350
Max.gradeability % 30
Engine(option)
HATZ(4H50TIC)
Rated output kw/rpm 54.9/2600
Max.torque nm/rpm 240/1600-1900
No.of cylinder
4
Displacement L 1.952
Fuel tank capacity L 80
Driving type
2WD/4WD
Stage FWD/RVS
front3/rear2


                     The rough terrain forklift with closed cabin with warm air display
