FLIFT brand small electric forklift 1.5 ton battery forklift truck

Date: 2022-02-09 View:

High quality FLIFT 1.5 ton small electric forklift truck


High performance and energy efficient electric trucks


Customizable operator compartment optimize comfort and forward visibility through the mast


Ergonomic full-scale operation space layout optimization, which offers operator excellent, comfortable and convenient operating experience.


Standard 2-stage 3 meters wide-view mast, can be optional as requested.


FLIFT 1.5 ton electric forklift specification
Model
FB15
Rated Capacity kg 1500
Load Centre mm 500
Lift Height mm 3000
Fork Size (L*W*T) mm 920*120*35
Mast Tilt Angle (F/R) Deg 6°/12°
Front Overhang (Wheel Center to fork face) mm 420
Tread (F/R) mm 890/920
Ground Clearance (Bottom of mast) mm 115
Fork Spread (Min./Max.)   240/970
Length to face of fork(Without fork) mm 2150
Overall Width mm 1090
Mast Lowered Height mm 1995
Mast Extended Height(With backrest) mm 3945
Overall Guard Height mm 2170
Turning Radius(outside) mm 1950
Min. insecting aisle mm 2050
Travel speed (Empty load) km/h 15
Lifting speed (Full load) mm/s 280
Max. Gradeability % 15
Wheel Base mm 1380
Service Weight kg 3070
Drive Motor kw 8
Lift Motor kw 8.6
Voltage/Capacity V/Ah 48/440
Controller type
AC

CE certificate:

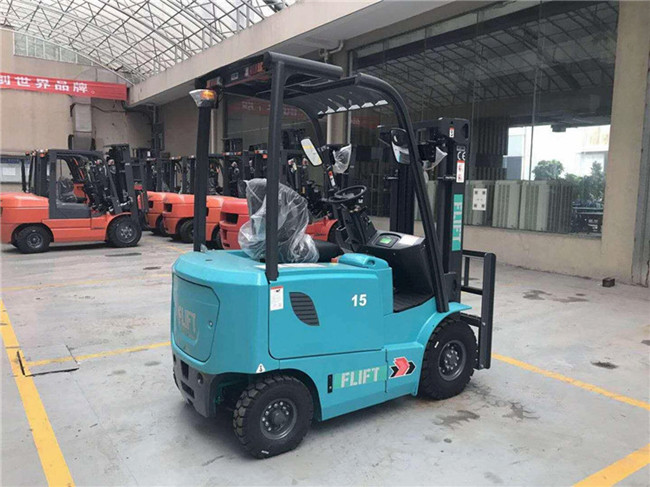

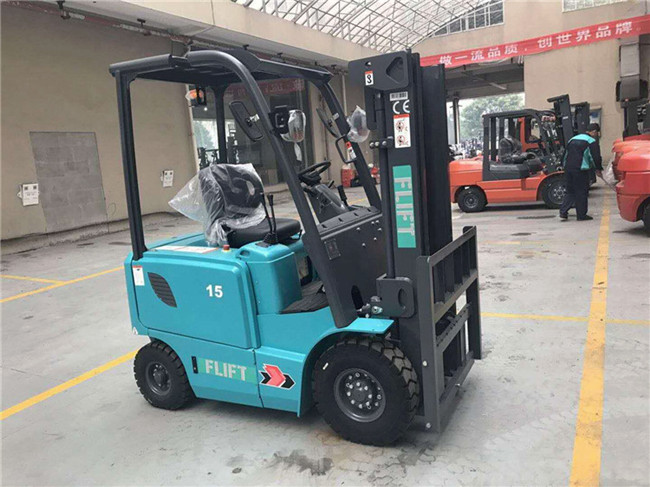

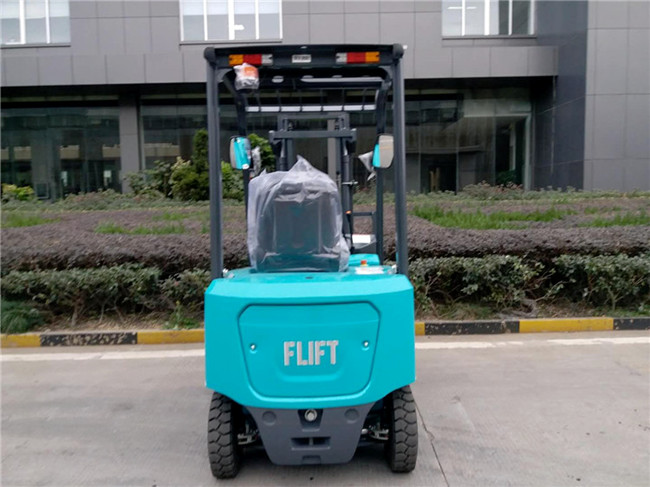

FLIFT 1.5 ton electric forklift whole vehicle showing:
